HG65806DPCUPR-NF
ActivePasternack

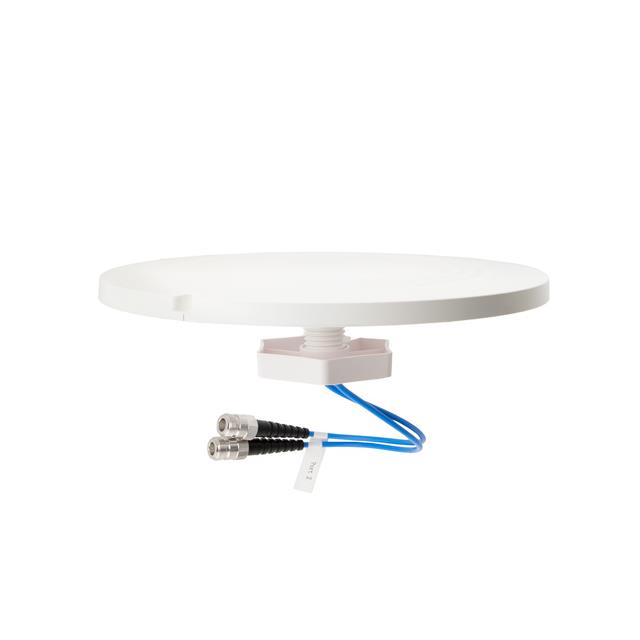

ANTENNA, MIMO, 617 MHZ TO 6 GHZ, 1.5 DBI, HORIZONTAL, LINEAR, N CONNECTOR
HG65806DPCUPR-NF
ActivePasternack
ANTENNA, MIMO, 617 MHZ TO 6 GHZ, 1.5 DBI, HORIZONTAL, LINEAR, N CONNECTOR
Description
General part information
HG65806DPCUPR-NF
RF ANTENNA 5G, CDMA, GSM, IoT, LoRa, LPWAN, LTE Module N Type Female (2) Ceiling Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG65806DPCUPR-NF |
|---|---|
| Antenna Type | Module |
| Applications | 5G, GSM, LoRa, CDMA, LTE, IoT, LPWAN |
| Features | Cable - 3.048m, Cable - 7.62m, Cable - 1.524m, Cable - 305mm |
| Frequency (Center/Band) | 3.55GHz, 5.45GHz, 788.5MHz, 1.45GHz, 2.195GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 617 MHz |
| Frequency Range (Band 2) Maximum | 1.55 GHz |
| Frequency Range (Band 2) Minimum | 1.35 GHz |
| Frequency Range (Band 3) Maximum | 2.7 GHz |
| Frequency Range (Band 3) Minimum | 1.69 GHz |
| Frequency Range (Band 4) Maximum | 3.8 GHz |
| Frequency Range (Band 4) Minimum | 3.3 GHz |
| Frequency Range (Band 5) Maximum | 6 GHz |
| Frequency Range (Band 5) Minimum | 4.9 GHz |
| Gain | 3.5 dBi, 6 dBi, 2.2 dBi, 4.5 dBi |
| Height (Max) | 0.71 in |
| Mounting Type | Ceiling Mount |
| Number of Bands | 5 |
| Power - Max | 50 VA |
| RF Family/Standard | Cellular |
| Termination Count | 2 |
| Termination Type | N Type Female |
| VSWR | 1.8 |
