2050036-4
ActiveTE Connectivity AMP Connectors

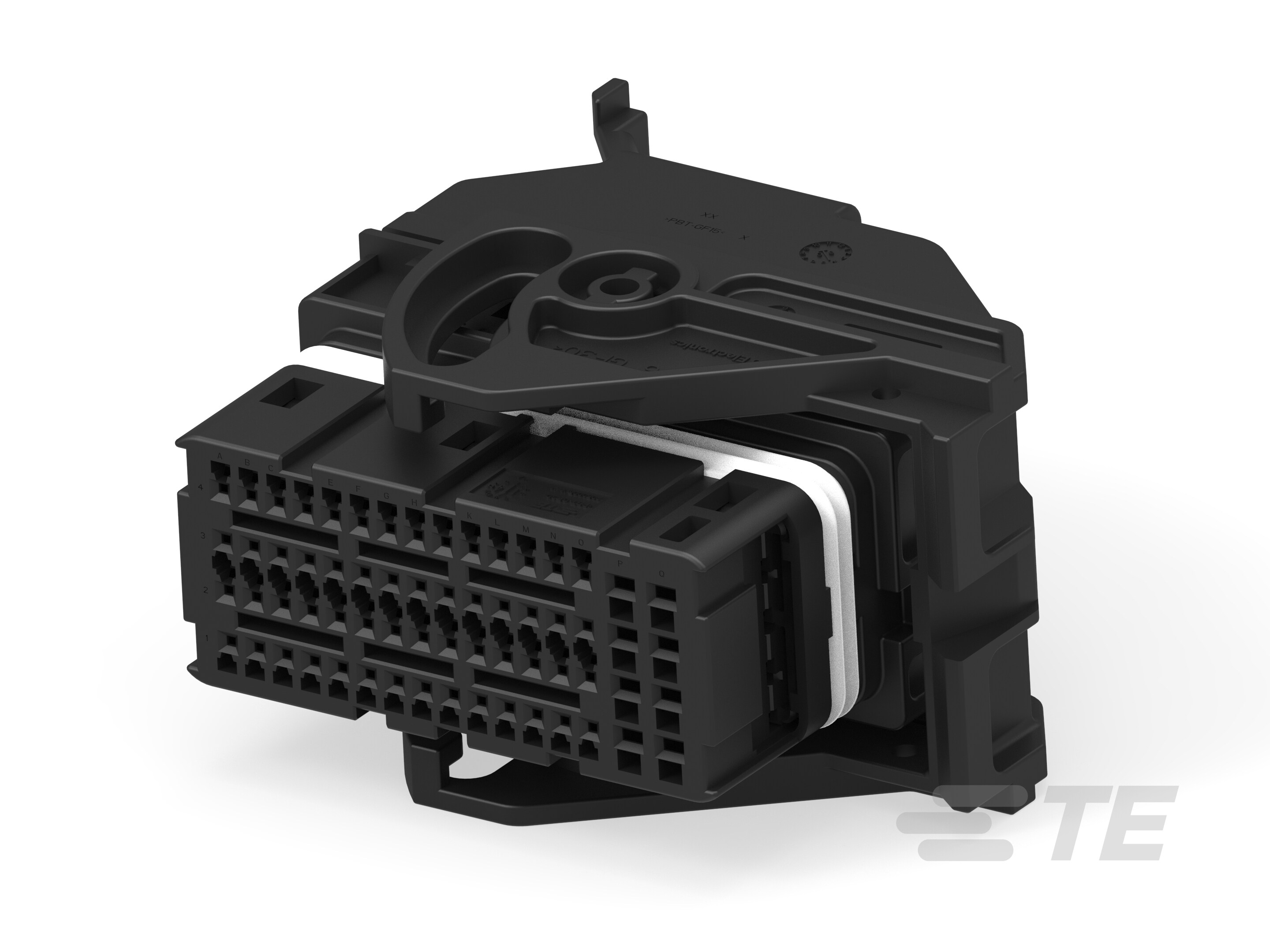

64P ECU PLUG CONNECTOR
2050036-4
ActiveTE Connectivity AMP Connectors
64P ECU PLUG CONNECTOR
Description
General part information
2050036-4
64 Position Housing, Housing for Female Terminals, Wire-to-Wire, 2.5 mm / 3.7 mm [.09 in / .14 in] Centerline, Sealable, Black, Wire & Cable
Technical Specifications
Parameters and characteristics for this part
| Specification | 2050036-4 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Lever Lock |
| Features | Connector Position Assurance (CPA) |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 64 |
| Number of Rows | 4 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.098 in |
