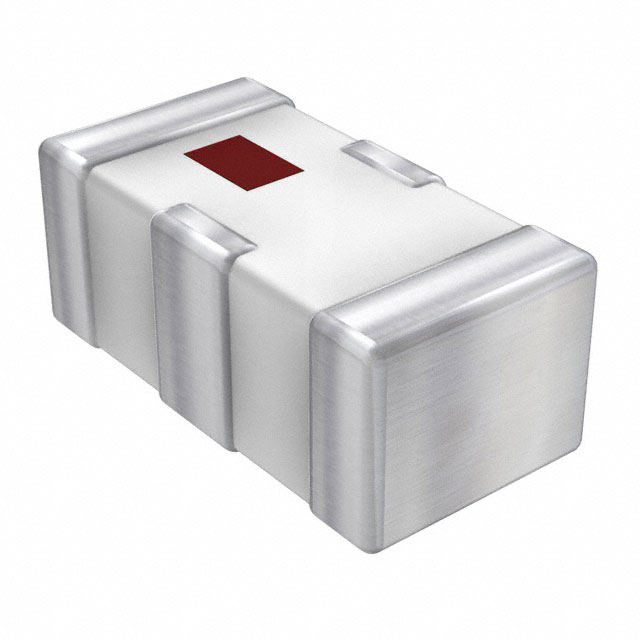

2450FM07A0029001T
ActiveJohanson Technology Inc.
RF FILTR LO PASS 2.4-2.5GHZ 0402
2450FM07A0029001T
ActiveJohanson Technology Inc.
RF FILTR LO PASS 2.4-2.5GHZ 0402
Description
General part information
2450FM07A0029001T
2.4GHz ~ 2.5GHz Frequency Low Pass RF Filter (Radio Frequency) 100MHz Bandwidth 0.8dB 0402 (1005 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 2450FM07A0029001T |
|---|---|
| Bandwidth | 100 MHz |
| Filter Type | Low Pass |
| Frequency (Max) | 2.5 GHz |
| Frequency (Min) | 2.4 GHz |
| Height (Max) | 0.016 in |
| Insertion Loss | 0.8 dB |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension Length | 0.039 in |
| Size / Dimension Width | 0.02 in |
