532434-5
ActiveTE Connectivity AMP Connectors
HDI RECP ASSY 4 ROW 160 POS ROHS COMPLIANT: NO
532434-5
ActiveTE Connectivity AMP Connectors
HDI RECP ASSY 4 ROW 160 POS ROHS COMPLIANT: NO
Description
General part information
532434-5

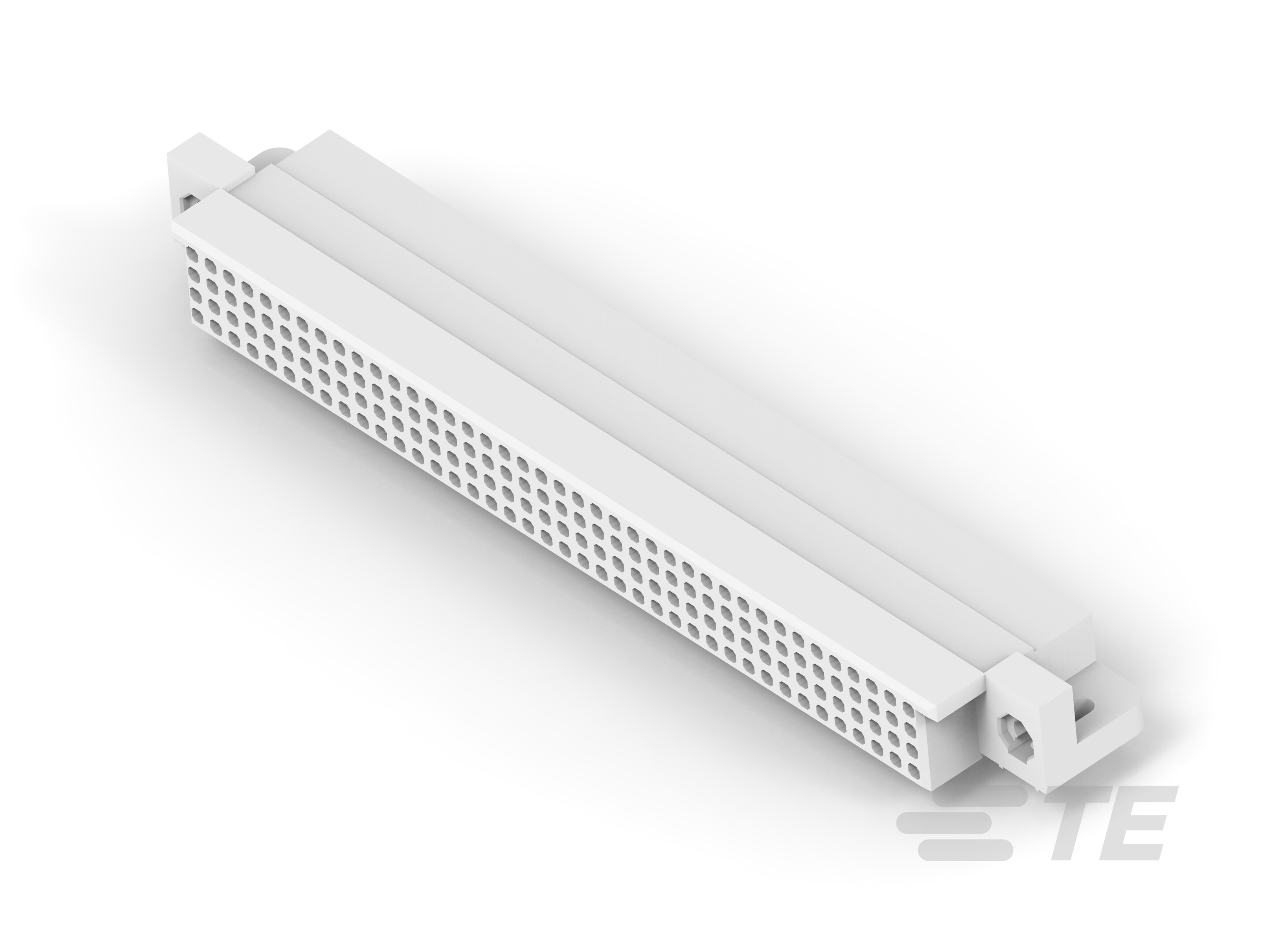

PCB Mount Receptacle, Right Angle, Board-to-Board, 160 Position, 2.54 mm [.1 in] Centerline, Gold (Au), Through Hole - Solder, Signal, Natural, Tube
Technical Specifications
Parameters and characteristics for this part
| Specification | 532434-5 |
|---|---|
| Color | Natural |
| Connector Style | High Density (HDC, HDI, HPC) |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Mating Guide |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 160 |
| Number of Positions Loaded | All |
| Number of Rows | 4 |
| Pitch | 0.1 in |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
