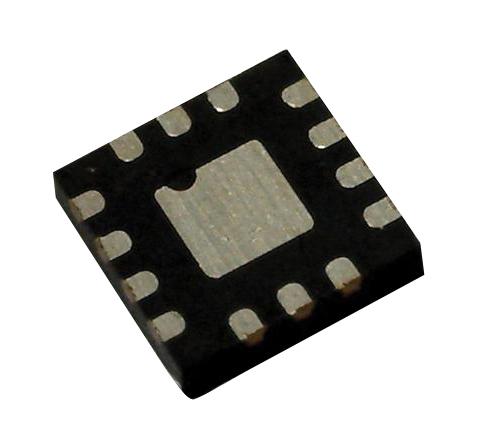

NTS0104BQ-Q100X
ActiveVOLTAGE LEVEL TRANSLATOR CMOS TO CMOS 4-CH BIDIRECTIONAL 14-PIN DHVQFN EP T/R AUTOMOTIVE AEC-Q100
NTS0104BQ-Q100X
ActiveVOLTAGE LEVEL TRANSLATOR CMOS TO CMOS 4-CH BIDIRECTIONAL 14-PIN DHVQFN EP T/R AUTOMOTIVE AEC-Q100
Description
General part information
NTS0104BQ-Q100X
Automotive product qualification in accordance with AEC-Q100 (Grade 1)Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Wide supply voltage range:VCC(A): 1.65 V to 3.6 V and VCC(B): 2.3 V to 5.5 V
Technical Specifications
Parameters and characteristics for this part
| Specification | NTS0104BQ-Q100X |
|---|---|
| Channel Type | Bidirectional |
| Channels per Circuit | 4 |
| Data Rate | 50 Mbps |
| Features | Auto-Direction Sensing |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Open Drain, Push-Pull |
| Package / Case | 14-VFQFN Exposed Pad |
| Package Length | 2.5 mm |
| Package Name | 14-DHVQFN |
| Package Width | 3 mm |
| Qualification | AEC-Q100 |
| Translator Type | Voltage Level |
| Voltage - VCCA (Max) | 3.6 V |
| Voltage - VCCA (Min) | 1.65 V |
| Voltage - VCCB (Max) | 5.5 V |
| Voltage - VCCB (Min) | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
