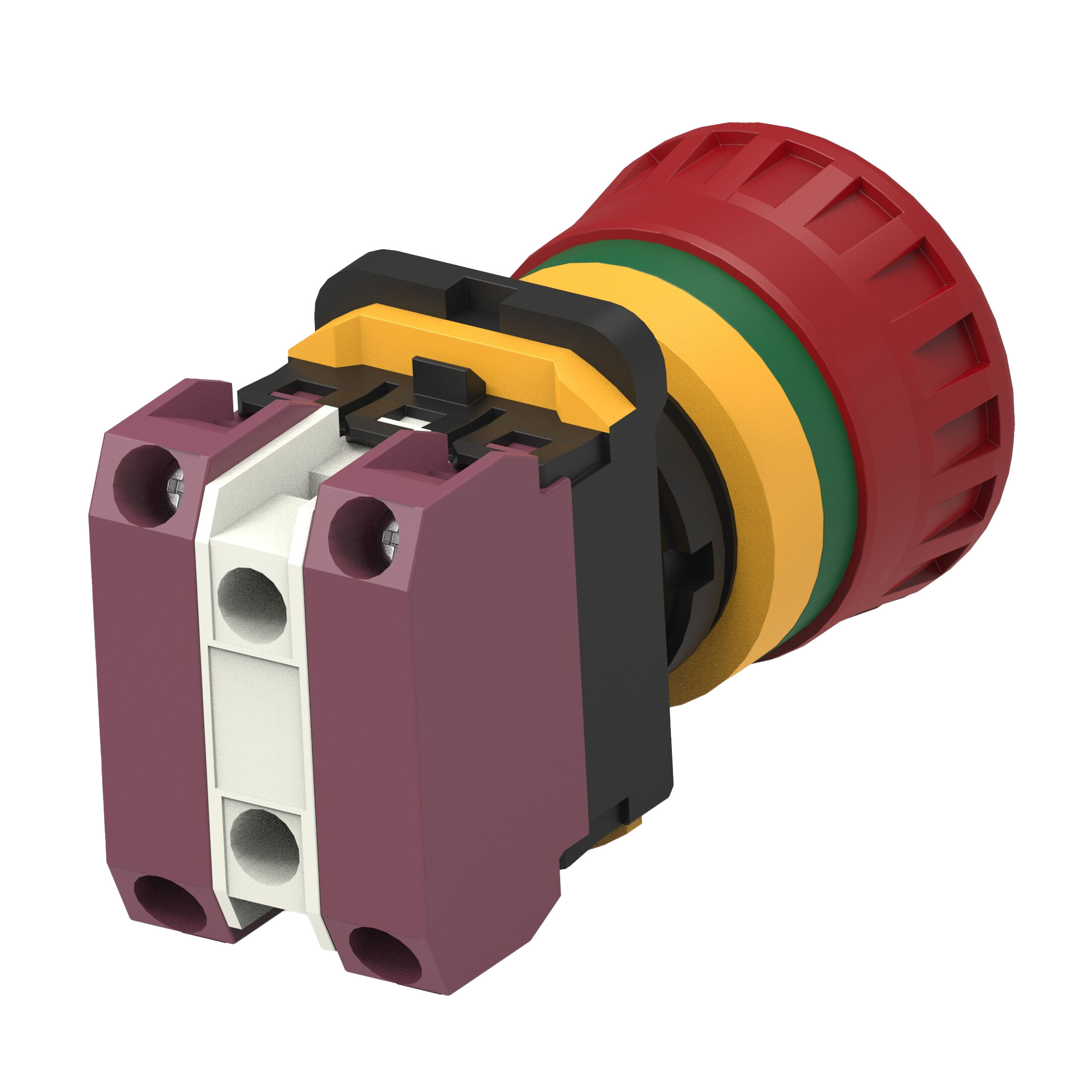

1-2416049-0
ActiveTE Connectivity AMP Connectors
PBES22 40 NO LAMP NC NC
1-2416049-0
ActiveTE Connectivity AMP Connectors
PBES22 40 NO LAMP NC NC
Description
General part information
1-2416049-0
PBES22 40 NO LAMP NC NC
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2416049-0 |
|---|---|
| Circuit | DPST-NC |
| Current Rating | 8 A, 10 A |
| Features | Turn-Reset, Push-Lock |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 22.3 mm |
| Panel Cutout Shape | Circular |
| Reset Operation | Twist, Pull |
| Switch Function | On-Off |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 24 V |
