B44066R6012E230
ActiveEPCOS - TDK Electronics

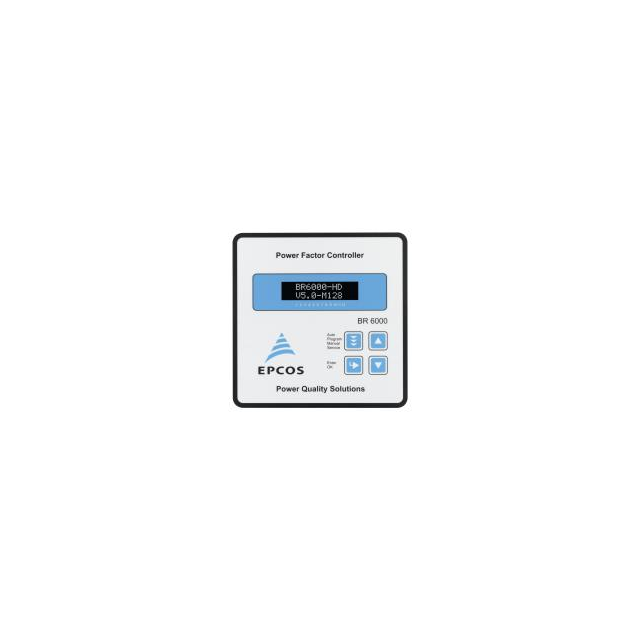

POWER FACTOR CNTRLR BR6000-R12
B44066R6012E230
ActiveEPCOS - TDK Electronics
POWER FACTOR CNTRLR BR6000-R12
Description
General part information
B44066R6012E230
Voltage Sensing AC 110 ~ 230VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | B44066R6012E230 |
|---|---|
| Contact Rating (Current) | 6 A |
| Delay Time (Maximum) | 20 Min |
| Delay Time (Minimum) | 1 Sec |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Output Type | Relay |
| Trip Voltage (Max) | 525 VAC |
| Trip Voltage (Min) | 30 VAC |
| Type | Voltage Sensing AC |
| Voltage - Supply (Maximum) | 230 VAC |
| Voltage - Supply (Minimum) | 110 VAC |
