2-2340331-1

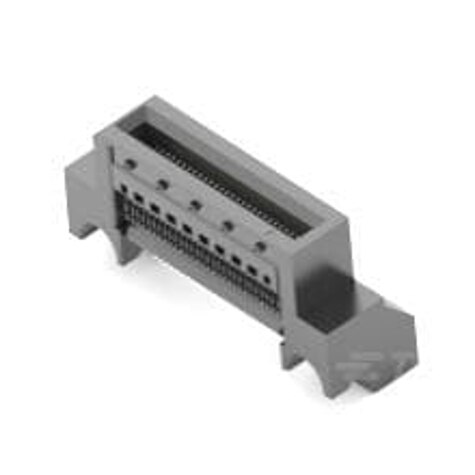

TE Sliver, PCB Edge Card, Straddle Mount, 56 Position, Surface Mount, .6 mm [.023 in] Centerline, Sliver for SFF-TA-1002, Internal I/O Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-2340331-1 |
|---|---|
| Card Thickness | 0.093 in |
| Card Type | Non Specified, Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Copper Alloy |
| Flange Feature | Straddle Mount Opening, Unthreaded |
| Flange Feature Opening Size | 0.094 in |
| Gender | Female |
| Mounting Type | Straddle Mount, Board Edge |
| Number of Positions | 56, 28 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.024 in |
| Read Out | Dual |
| Termination | Solder |
