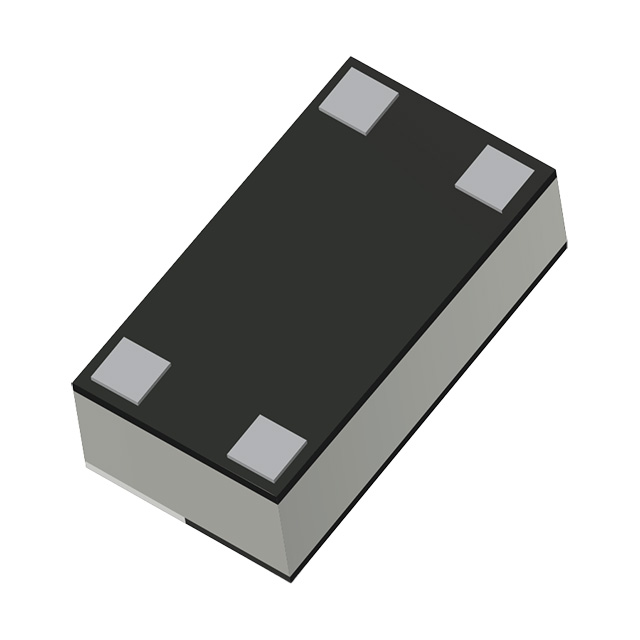

BP2816A0300SNTR\50
ActiveKYOCERA AVX
RF FILTER BAND PASS 300MHZ 4SMD
BP2816A0300SNTR\50
ActiveKYOCERA AVX
RF FILTER BAND PASS 300MHZ 4SMD
Description
General part information
BP2816A0300SNTR\50
300MHz Center Frequency Band Pass RF Filter (Radio Frequency) 60MHz Bandwidth -1.5dB 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | BP2816A0300SNTR\50 |
|---|---|
| Bandwidth | 60 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 300 MHz |
| Height (Max) | 0.047 in |
| Insertion Loss | -1.5 dB |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.283 in |
| Size / Dimension Width | 0.165 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
