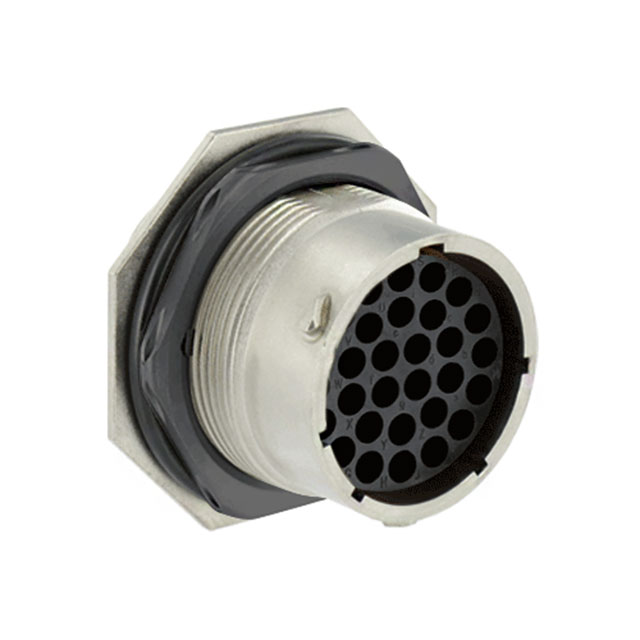

Specification	UT072030SH601

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16 S
Contact Type	Crimp, Solder
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection Description	Water Resistant, Waterproof, Dust Tight
Ingress Protection IP Rating	IP69K, IP68
Insert Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	30
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Shell Finish	Nickel
Shell Material	Halogen Free, Zinc Alloy
Shell Size - Insert (Maximum)	30
Shell Size - Insert (Minimum)	20
Shielding	Shielded
Type	For Female Sockets

UT072 Series

Part	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Shielding	Shell Finish	Contact Type	Housing Color	Contact Shape	Shell Material	Type	Mounting Type	Fastening Type	Note	Number of Positions	Contact Size	Connector Type	Insert Material	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Feature
Amphenol Aerospace Operations UT072235SH601	N (Normal)	Dust Tight Water Resistant Waterproof	IP68 IP69K	Shielded	Nickel	Crimp Solder	Silver	Circular	Halogen Free Zinc Alloy	For Female Sockets	Panel Mount	Bayonet Lock	Contacts Not Included	35	16 S	Receptacle Housing	Glass Filled Thermoplastic	22	35	UL94 V-0	-40 °C	105 °C	Bulkhead Front Side Nut
Amphenol Aerospace Operations UT072028SH601	N (Normal)	Dust Tight Water Resistant Waterproof	IP68 IP69K	Shielded	Nickel	Crimp Solder	Silver	Circular	Halogen Free Zinc Alloy	For Female Sockets	Panel Mount	Bayonet Lock	Contacts Not Included	28	16 S	Receptacle Housing	Glass Filled Thermoplastic	20	28	UL94 V-0	-40 °C	105 °C	Bulkhead Front Side Nut
Amphenol Aerospace Operations UT072028PH6	N (Normal)	Dust Tight Water Resistant Waterproof	IP68 IP69K	Shielded	Nickel	Crimp Solder	Silver	Circular	Halogen Free Zinc Alloy	For Male Pins	Panel Mount	Bayonet Lock	Contacts Not Included	28	16 S	Receptacle Housing	Glass Filled Thermoplastic	20	28	UL94 V-0	-40 °C	105 °C	Bulkhead Front Side Nut
Amphenol Aerospace Operations UT072235PH01	N (Normal)	Dust Tight Waterproof	IP67	Shielded	Nickel	Crimp Solder	Silver	Circular	Halogen Free Zinc Alloy	For Male Pins	Panel Mount	Bayonet Lock	Contacts Not Included	35	16 S	Receptacle Housing	Glass Filled Thermoplastic	22	35	UL94 V-0	-40 °C	105 °C	Bulkhead Front Side Nut
Amphenol Aerospace Operations UT072235SH01	N (Normal)	Dust Tight Waterproof	IP67	Shielded	Nickel	Crimp Solder	Silver	Circular	Halogen Free Zinc Alloy	For Female Sockets	Panel Mount	Bayonet Lock	Contacts Not Included	35	16 S	Receptacle Housing	Glass Filled Thermoplastic	22	35	UL94 V-0	-40 °C	105 °C	Bulkhead Front Side Nut
Amphenol Aerospace Operations UT072028SH6	N (Normal)	Dust Tight Water Resistant Waterproof	IP68 IP69K	Shielded	Nickel	Crimp Solder	Silver	Circular	Halogen Free Zinc Alloy	For Female Sockets	Panel Mount	Bayonet Lock	Contacts Not Included	28	16 S	Receptacle Housing	Glass Filled Thermoplastic	20	28	UL94 V-0	-40 °C	105 °C	Bulkhead Front Side Nut
Amphenol Aerospace Operations UT072448SH6	N (Normal)	Dust Tight Water Resistant Waterproof	IP68 IP69K	Shielded	Nickel	Crimp Solder	Silver	Circular	Halogen Free Zinc Alloy	For Female Sockets	Panel Mount	Bayonet Lock	Contacts Not Included	48	16 S	Receptacle Housing	Glass Filled Thermoplastic	24	48	UL94 V-0	-40 °C	105 °C	Bulkhead Front Side Nut
Amphenol Aerospace Operations UT072030PH601	N (Normal)	Dust Tight Water Resistant Waterproof	IP68 IP69K	Shielded	Nickel	Crimp Solder	Silver	Circular	Halogen Free Zinc Alloy	For Male Pins	Panel Mount	Bayonet Lock	Contacts Not Included	30	16 S	Receptacle Housing	Glass Filled Thermoplastic	20	30	UL94 V-0	-40 °C	105 °C	Bulkhead Front Side Nut
Amphenol Aerospace Operations UT072028SH	N (Normal)	Dust Tight Waterproof	IP67	Shielded	Nickel	Crimp Solder	Silver	Circular	Halogen Free Zinc Alloy	For Female Sockets	Panel Mount	Bayonet Lock	Contacts Not Included	28	16 S	Receptacle Housing	Glass Filled Thermoplastic	20	28	UL94 V-0	-40 °C	105 °C	Bulkhead Front Side Nut
Amphenol Aerospace Operations UT072235PH	N (Normal)	Dust Tight Waterproof	IP67	Shielded	Nickel	Crimp Solder	Silver	Circular	Halogen Free Zinc Alloy	For Male Pins	Panel Mount	Bayonet Lock	Contacts Not Included	35	16 S	Receptacle Housing	Glass Filled Thermoplastic	22	35	UL94 V-0	-40 °C	105 °C	Bulkhead Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

UT072030SH601 | Datasheet
