1-1318751-2
ActiveTE Connectivity AMP Connectors
025/090 80POS CAP ASSY H SELECTIVE-TIN

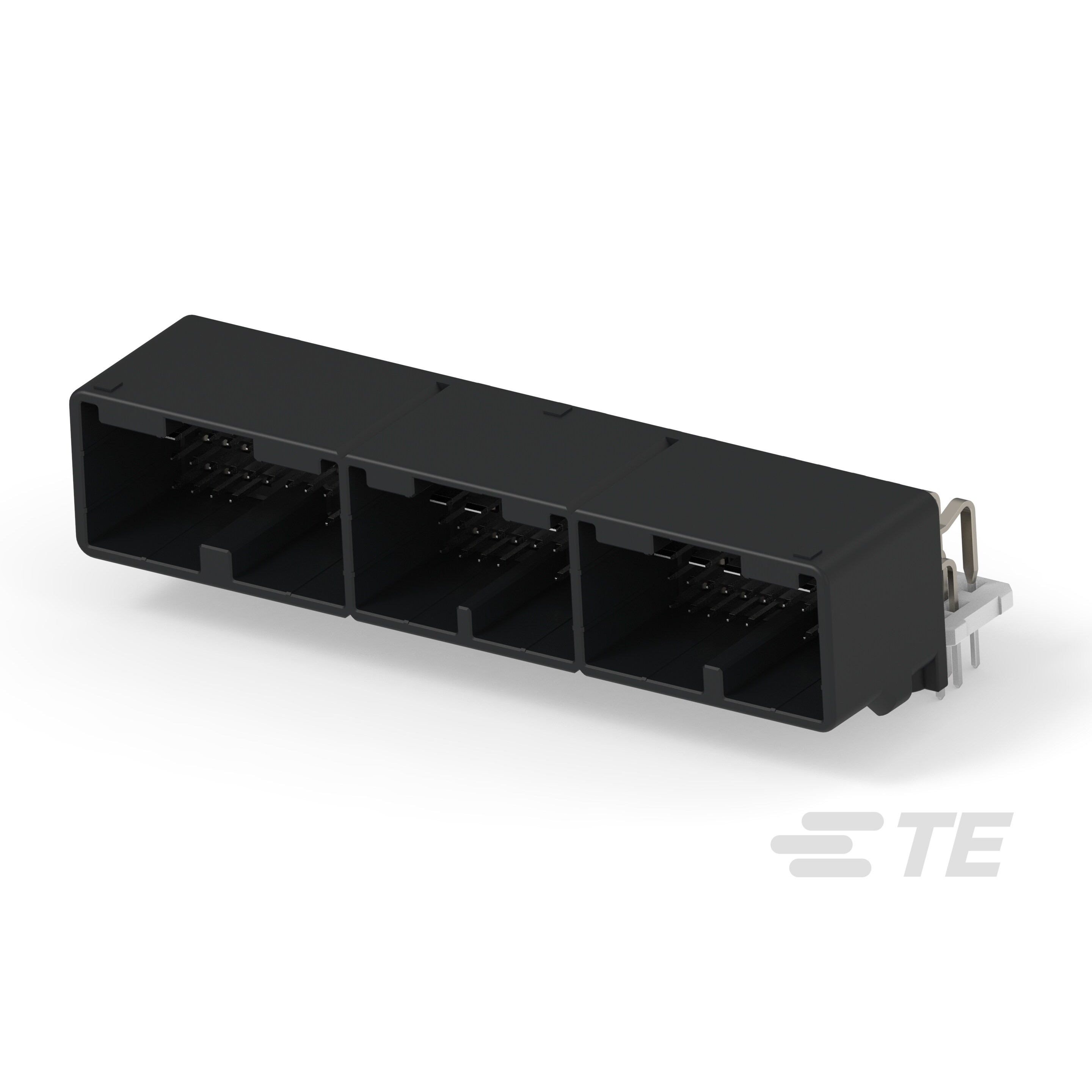

1-1318751-2
ActiveTE Connectivity AMP Connectors
025/090 80POS CAP ASSY H SELECTIVE-TIN
Description
General part information
0.64/025 Connector System Series
Horizontal, Wire-to-Board, 80 Position, 3 Rows, 2.2mm / 4mm [.087in / .157in] Centerline, Tin (Sn), Printed Circuit Board, 0.64/025 Connector System
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1318751-2 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.157 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | Mounting Flange |
| Insulation Color | Black |
| Insulation Height | 0.811 in |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 80 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch - Mating | 0.087 in |
| Row Spacing - Mating | 0.118 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 12 V |
