2480842-1
ActiveTE Connectivity AMP Connectors

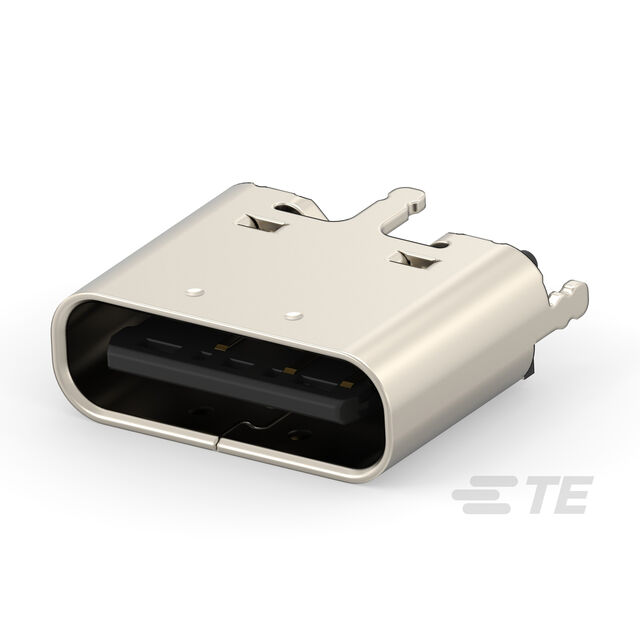

USB C CHARGE-ONLY,6 PIN, VERT, LONG,LOCK
2480842-1
ActiveTE Connectivity AMP Connectors
USB C CHARGE-ONLY,6 PIN, VERT, LONG,LOCK
Description
General part information
2480842-1
C, 2.0, Standard Profile, Receptacle, 1 Port, Top, Vertical, Reel, Flush, Through Hole - Solder, Cable-to-Board, 6 Position, USB Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 2480842-1 |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating | 3 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1000 cycles |
| Mounting Feature | Vertical |
| Mounting Type | Surface Mount, Through Hole |
| Number of Contacts | 24 |
| Number of Contacts (Dummy) | 18 |
| Number of Contacts (Functional) | 6 |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Shell/Shielding Material | Steel, Stainless |
| Shielding | Shielded |
| Termination | Solder |
| Voltage - Rated | 20 V |
