1004112-A001
ActiveKYOCERA AVX

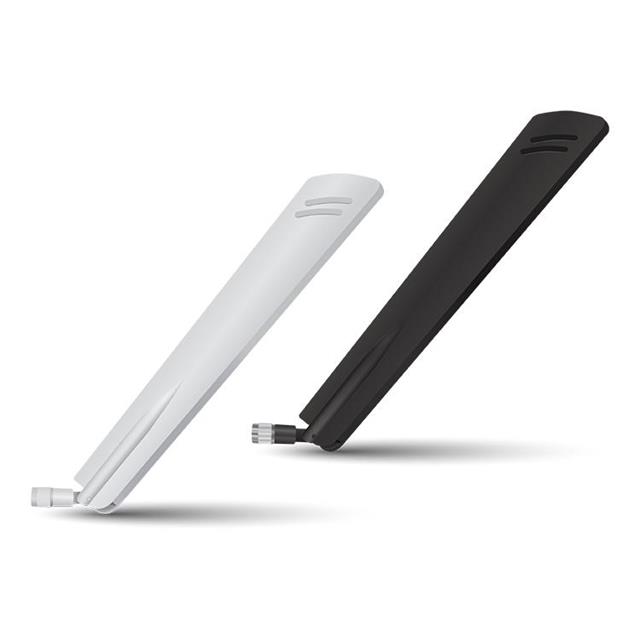

ANTENNA ASSY, EXTERNAL LTE SMA
1004112-A001
ActiveKYOCERA AVX
ANTENNA ASSY, EXTERNAL LTE SMA
Description
General part information
1004112-A001
RF ANTENNA LTE, LoRa, LPWAN, Sigfox Whip, Tilt SMA Male Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 1004112-A001 |
|---|---|
| Antenna Type | Tilt, Whip |
| Applications | Sigfox, LPWAN, LoRa, LTE |
| Frequency (Center/Band) | 2.6GHz, 1.955GHz, 825MHz |
| Frequency (Center/Band) - 1 | 825 MHz |
| Frequency (Center/Band) - 2 | 1.955 GHz |
| Frequency (Center/Band) - 3 | 2.6 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 690 MHz |
| Frequency Range (Band 2) Maximum | 2.2 GHz |
| Frequency Range (Band 2) Minimum | 1.71 GHz |
| Frequency Range (Band 3) Maximum | 2.7 GHz |
| Frequency Range (Band 3) Minimum | 2.5 GHz |
| Gain | 1.18 dBi, 4 dBi, 4.5 dBi |
| Height (Max) | 8.591 in |
| Mounting Type | Connector Mount |
| Number of Bands | 3 |
| Power - Max | 5 VA |
| RF Family/Standard | Cellular, 802.15.4 |
| Termination Type | SMA Male |
| VSWR | 2.5 |
