2.5 SIGNAL D/LOCK CAP HSG 4P
316088-1
ActiveTE Connectivity AMP Connectors
2.5 SIGNAL D/LOCK CAP HSG 4P
Description
General part information
316088-1

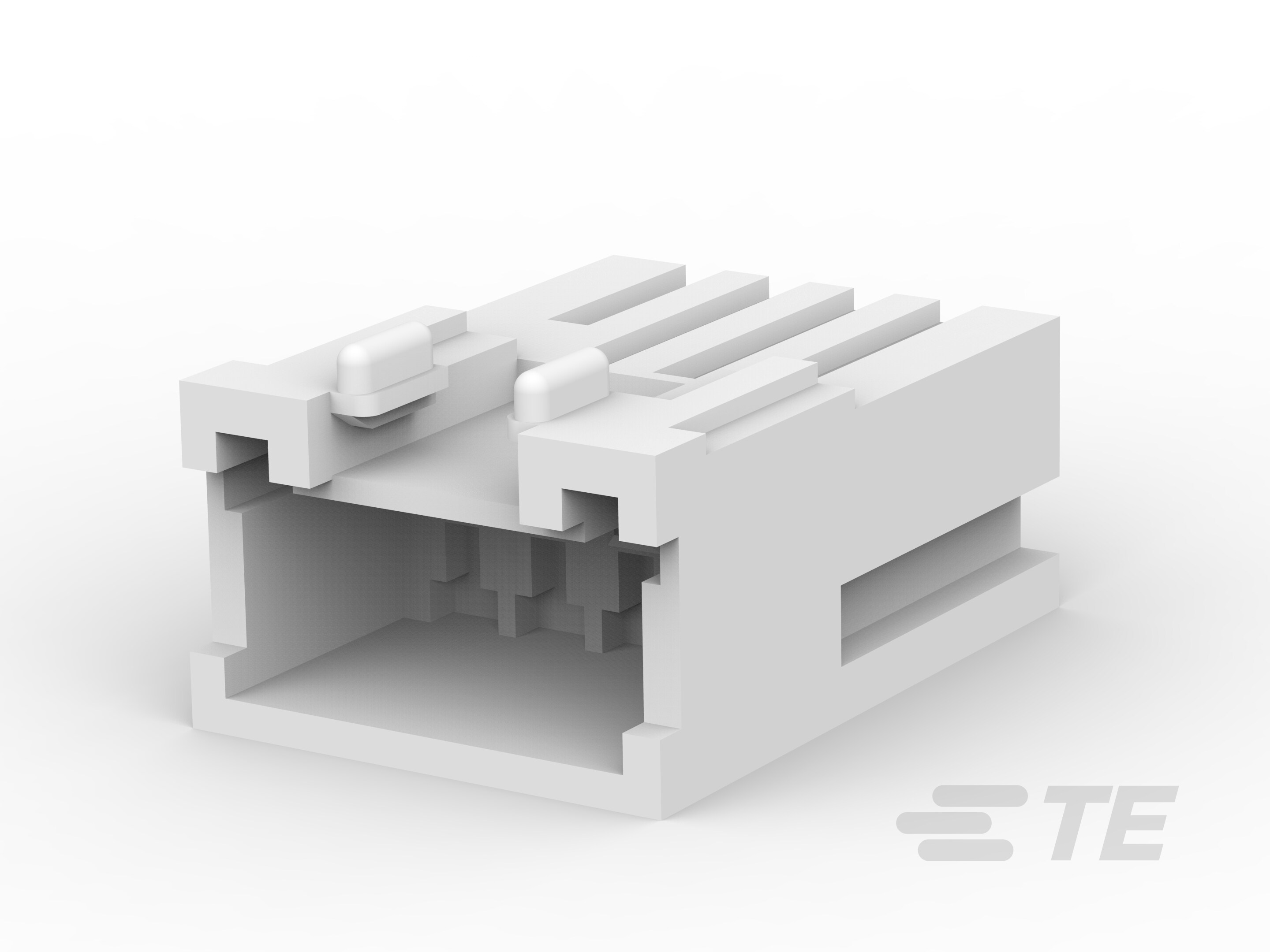

4 Position, Plug, Housing, Crimp, Wire-to-Wire, UL 94V-0, 2.5 mm [.098 in] Centerline, 1 Row, 250 VAC, Wire & Cable, AMP Signal Double Lock
Technical Specifications
Parameters and characteristics for this part
| Specification | 316088-1 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch | 0.098 in |
