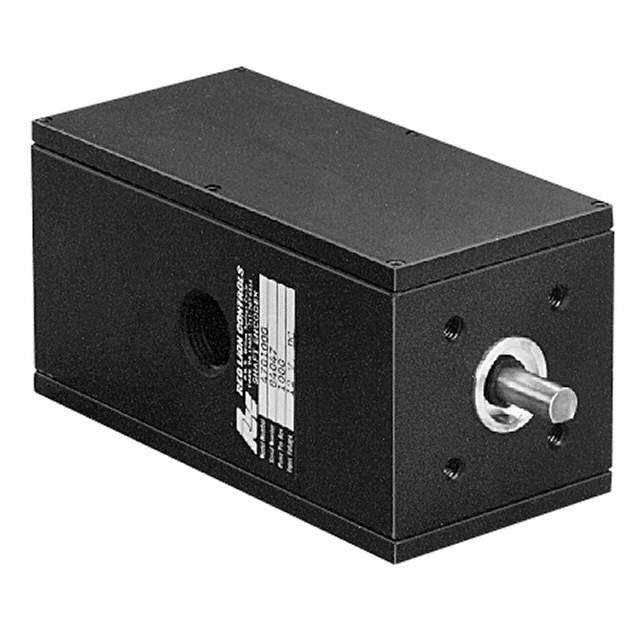

ZHG06004
ActiveRed Lion Controls
ROTARY ENCODER OPTICAL 600PPR
ZHG06004
ActiveRed Lion Controls
ROTARY ENCODER OPTICAL 600PPR
Description
General part information
ZHG06004
ROTARY ENCODER OPTICAL 600PPR
Technical Specifications
Parameters and characteristics for this part
| Specification | ZHG06004 |
|---|---|
| Actuator Diameter | 0.375 in |
| Actuator Type | Flatted End |
| Built in Switch | No |
| Detent | No |
| Encoder Type | Optical |
| Mounting Type | Chassis Mount |
| Output Type | Quadrature (Analog) |
| Pulses per Revolution | 600 |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 28 V |
| Voltage - Supply (Minimum) | 4.75 V |
