1414939
ActivePhoenix Contact
CBL 6POS RCPT RA TO WIRE 9.84'
1414939
ActivePhoenix Contact
CBL 6POS RCPT RA TO WIRE 9.84'
Description
General part information
1414939

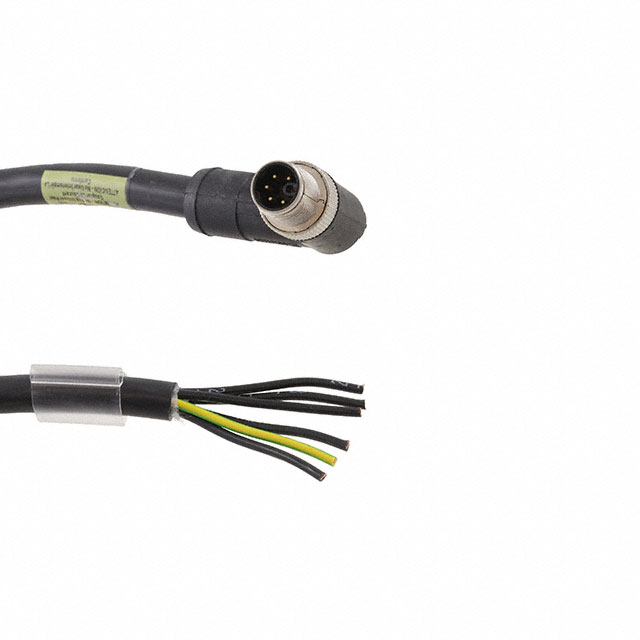

Circular Cable Assembly Unshielded 9.84' (3.00m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 1414939 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 6 positions |
| 1st Connector Number of Positions (Power) | 5 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | M |
| 1st Connector Position Types | PE |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Right Angle, Receptacle |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round |
| Color | Black |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Length | 9.84 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments |
