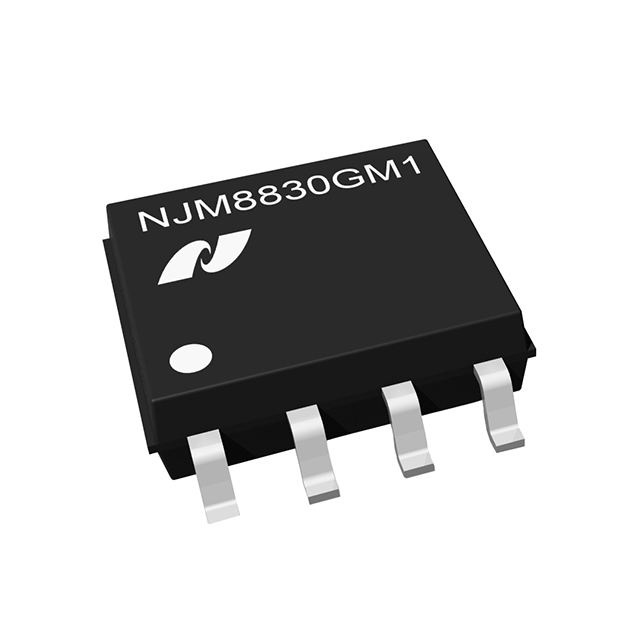

NJM8830GM1-TE1
ActiveNisshinbo Micro Devices Inc.
ULTRALOW DISTORTION, ULTRALOW NO
NJM8830GM1-TE1
ActiveNisshinbo Micro Devices Inc.
ULTRALOW DISTORTION, ULTRALOW NO
Description
General part information
NJM8830GM1-TE1
Audio Amplifier 2 Circuit Rail-to-Rail 8-HSOP-M1
Technical Specifications
Parameters and characteristics for this part
| Specification | NJM8830GM1-TE1 |
|---|---|
| Amplifier Type | Audio |
| Current - Input Bias | 150 nA |
| Current - Output / Channel | 100 mA |
| Current - Supply | 6.5 mA |
| Gain Bandwidth Product | 90 MHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Rail-to-Rail |
| Package Features | Exposed Pad |
| Package Length | 0.173 in |
| Package Name | 8-SOIC, 8-HSOP-M1 |
| Package Width | 4.4 mm |
| Slew Rate | 30 V/µs |
| Voltage - Input Offset | 500 µV |
| Voltage - Supply Span (Min) | 4 V |
