IDWD140E120D7XKSA1
Soft-switching 1200 V, 140 A Emitter Controlled 7silicon diodein TO-247-2 2pin package.
Technical Specifications
Parameters and characteristics for this part
| Specification | IDWD140E120D7XKSA1 |
|---|---|
| Current - Average Rectified (Io) | 207 A |
| Current - Reverse Leakage | 20 µA |
| Mounting Type | Through Hole |
| Operating Temperature - Junction (Max) | 175 °C |
| Operating Temperature - Junction (Min) | -40 °C |
| Package / Case | TO-247-2 |

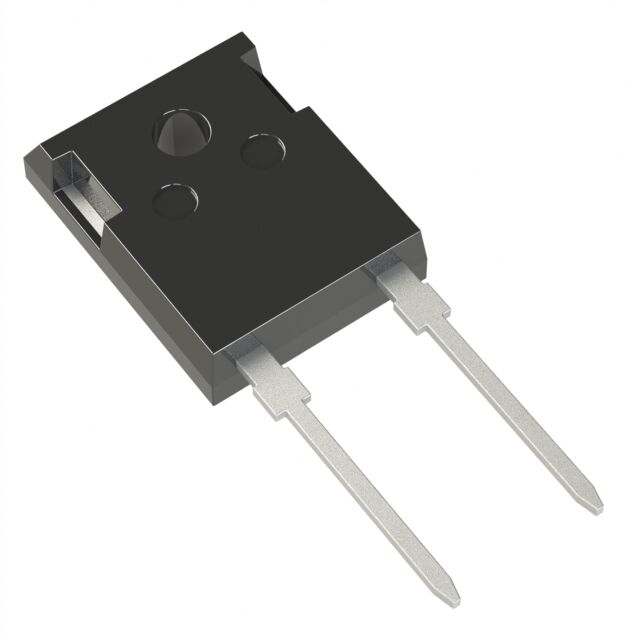

| Package Name | PG-TO247-2-2 |
| Reverse Recovery Time (trr) | 225 ns |
| Speed - Fast Recovery (Maximum) | 500 ns |
| Speed - Fast Recovery (Minimum) | 5 A |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Voltage - Forward (Vf) (Max) | 3 V |
