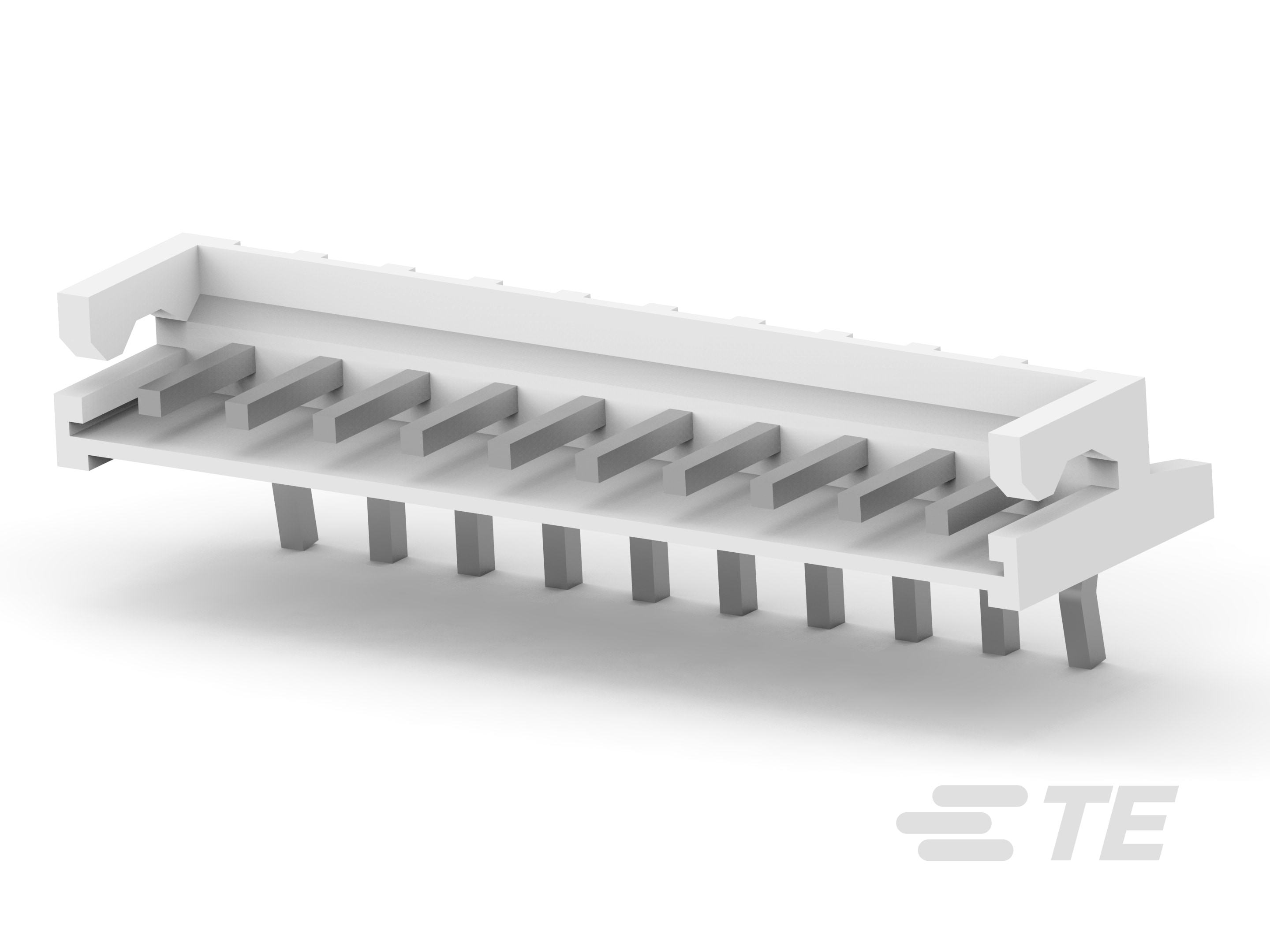

1-440053-0
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 10POS 2.5MM
1-440053-0
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 10POS 2.5MM
Description
General part information
1-440053-0
PCB Mount Header, Right Angle, Wire-to-Board, 10 Position, 2.5 mm [.098 in] Centerline, Partially Shrouded, Tin (Sn), Through Hole - Press-Fit, Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-440053-0 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 0.157 in |
| Contact Length - Post | 0.134 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 3 A |
| Fastening Type | Friction Lock |
| Insulation Color | Natural |
| Insulation Height | 0.165 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Pitch - Mating | 0.098 in |
| Shrouding | Shrouded - 3 Wall |
| Style | Cable/Wire, Board |
| Termination | Press-Fit, Solder |
| Voltage Rating | 250 V |
