Description
General part information

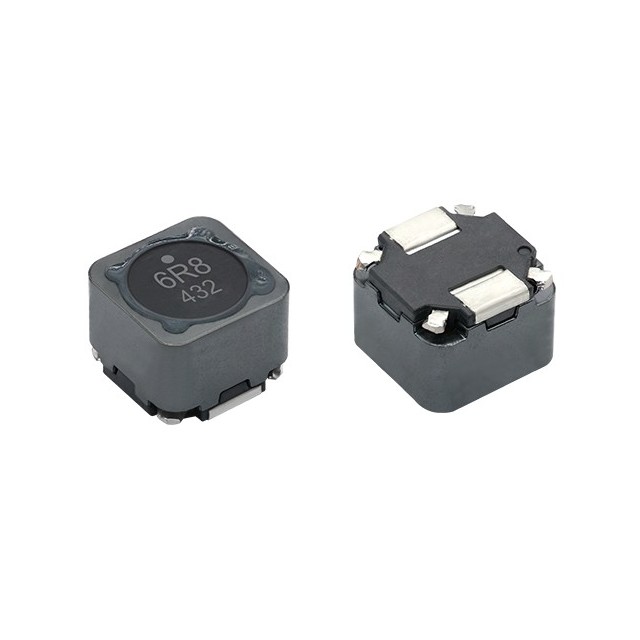

CRHSM0705-150M
SMD POWER INDUCTOR
Technical Specifications
Parameters and characteristics for this part
| Specification | CRHSM0705-150M |
|---|---|
| Current - Saturation (Isat) | 3.52 A |
| Current Rating | 2.6 A |
| Height - Seated (Max) | 0.228 in |
| Inductance | 15 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SMD |
| Package Name | 0705 |
| Shielding | Shielded |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.287 in |
| Tolerance | 20 % |
| Type | Wirewound |
