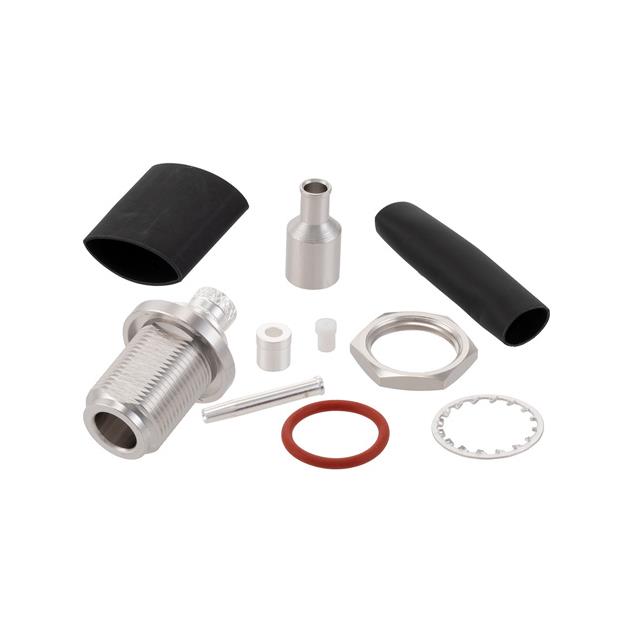

TC-402-NF-BH-LP-LC
ObsoletePasternack
N FEMALE BULKHEAD MOUNT LOW PIM
TC-402-NF-BH-LP-LC
ObsoletePasternack
N FEMALE BULKHEAD MOUNT LOW PIM
Description
General part information
TC-402-NF-BH-LP-LC
N Type Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | TC-402-NF-BH-LP-LC |
|---|---|
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Cable Group | TFT-402, TFT-402-LF |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Connector Style | N Type |
| Connector Type | Recepture, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Insertion Loss | 0.1 dB |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 1000 V |
