494136-E
ActiveTE Connectivity AMP Connectors
STVC/2 48 F ABC VVV 7-00 TL 4,0 * 207 E0
494136-E
ActiveTE Connectivity AMP Connectors
STVC/2 48 F ABC VVV 7-00 TL 4,0 * 207 E0
Description
General part information
494136-E

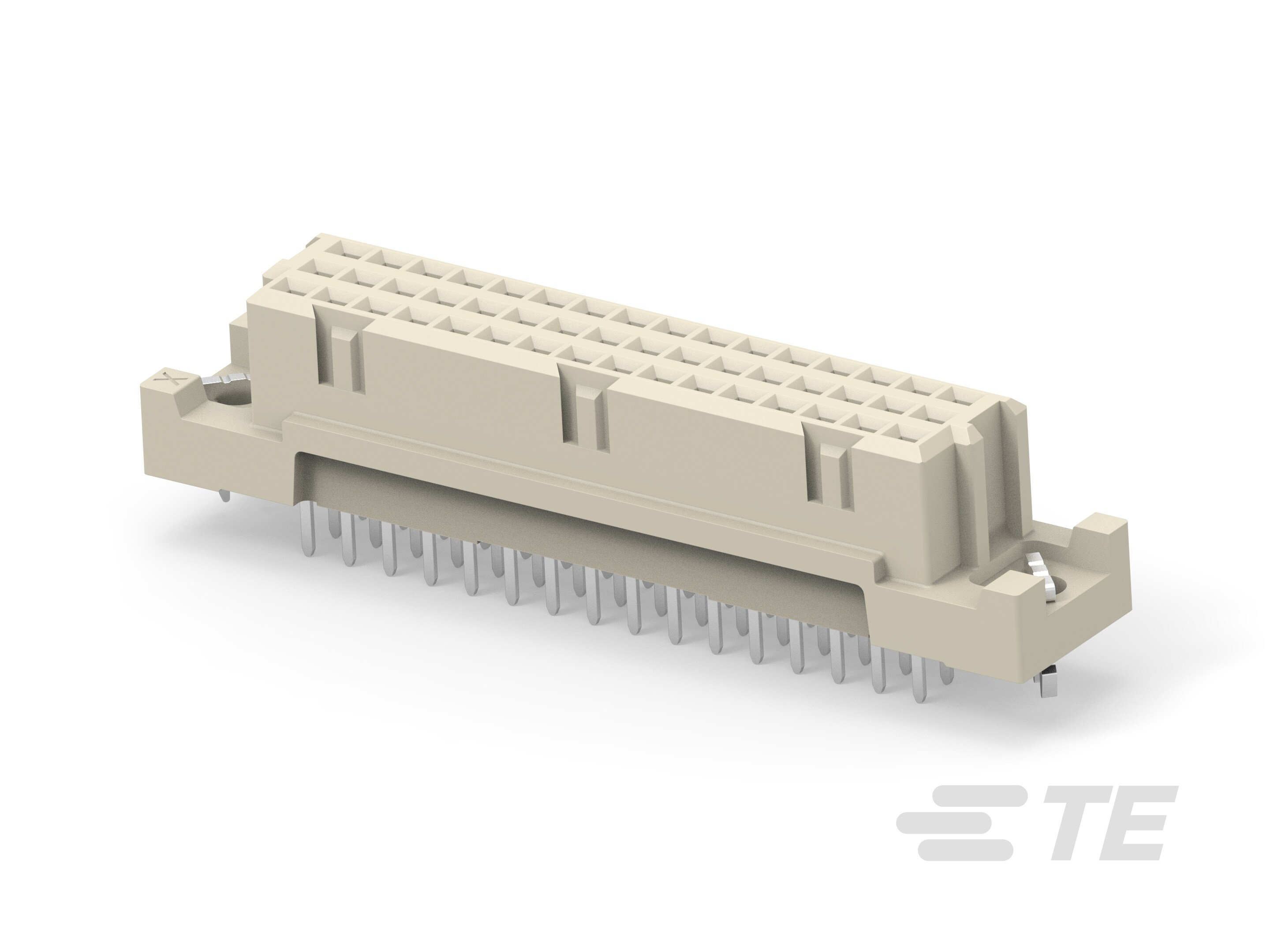

Receptacle, Board-to-Board, 48 Position, 2.54 mm [.1 in] Centerline, Printed Circuit Board, 3 Row, Vertical, 16 Column, Eurocard Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 494136-E |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 31.5 µin |
| Features | Mounting Clips |
| Level, Class | 2 |
| Mounting Type | Through Hole |
| Number of Positions | 48 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Pitch | 0.1 in |
| Style | C/2 (1/2 C) |
| Termination | Solder |
