76000926-2
ObsoleteDigi International

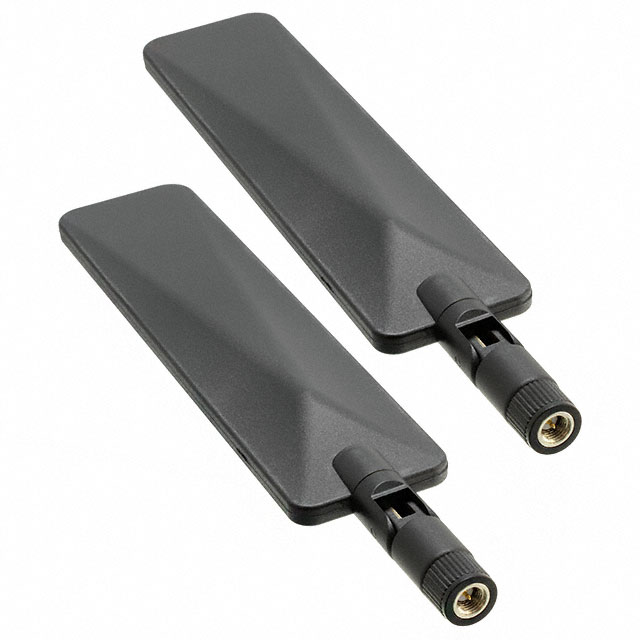

RF ANT 700/850MHZ BLADE CONN MT
76000926-2
ObsoleteDigi International
RF ANT 700/850MHZ BLADE CONN MT
Description
General part information
76000926-2
RF ANTENNA LTE Blade Connector Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 76000926-2 |
|---|---|
| Antenna Type | Blade |
| Applications | LTE |
| Frequency (Center/Band) | 900MHz, 2.1GHz, 700MHz, 2.6GHz, 850MHz |
| Frequency (Center/Band) - 1 | 700 MHz |
| Frequency (Center/Band) - 2 | 850 MHz |
| Frequency (Center/Band) - 3 | 900 MHz |
| Frequency (Center/Band) - 4 | 2.1 GHz |
| Frequency (Center/Band) - 5 | 2.6 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 698 MHz |
| Frequency Range (Band 2) Maximum | 2.17 GHz |
| Frequency Range (Band 2) Minimum | 1.71 GHz |
| Frequency Range (Band 3) Maximum | 2.7 GHz |
| Frequency Range (Band 3) Minimum | 2.5 GHz |
| Gain | 2 dBi |
| Height (Max) | 8.976 in |
| Mounting Type | Connector Mount |
| Number of Bands | 3 |
| Power - Max | 3 VA |
| RF Family/Standard | Cellular |
| Termination | Connector |
| VSWR | 2.5 |
