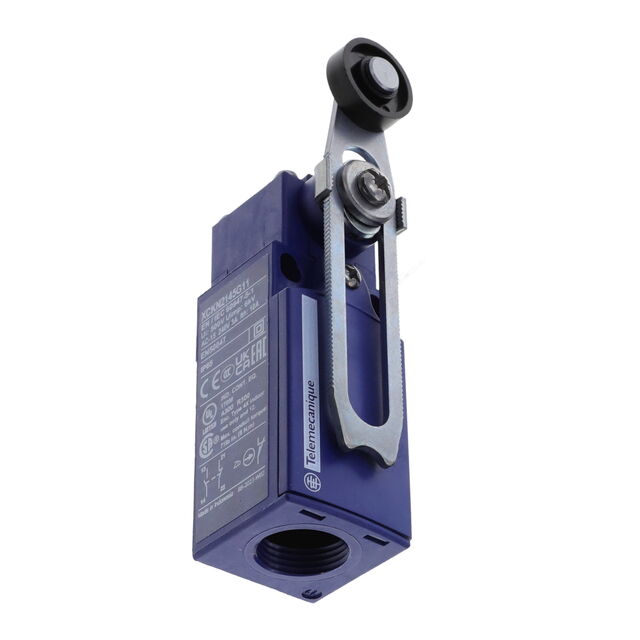

XCKN2145G11
ActiveSCHNEIDER ELECTRIC
LIMIT SWITCH, ADJUSTABLE ROLLER LEVER, SPST-NO, SPST-NC, 3 A, 240 V, 0.1 N-M, OSISENSE XC SERIES
XCKN2145G11
ActiveSCHNEIDER ELECTRIC
LIMIT SWITCH, ADJUSTABLE ROLLER LEVER, SPST-NO, SPST-NC, 3 A, 240 V, 0.1 N-M, OSISENSE XC SERIES
Description
General part information
XCKN2145G11
Switch DPST-NO/NC Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | XCKN2145G11 |
|---|---|
| Actuator Type | Adjustable Roller, Side Rotary |
| Circuit | DPST-NO/NC |
| Current Rating | 100 mA, 3 A |
| Electrical Life (Cycles) | 5000000 Cycles |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 250 VDC |
