Description

General part information

Schaffner FN2030 Series

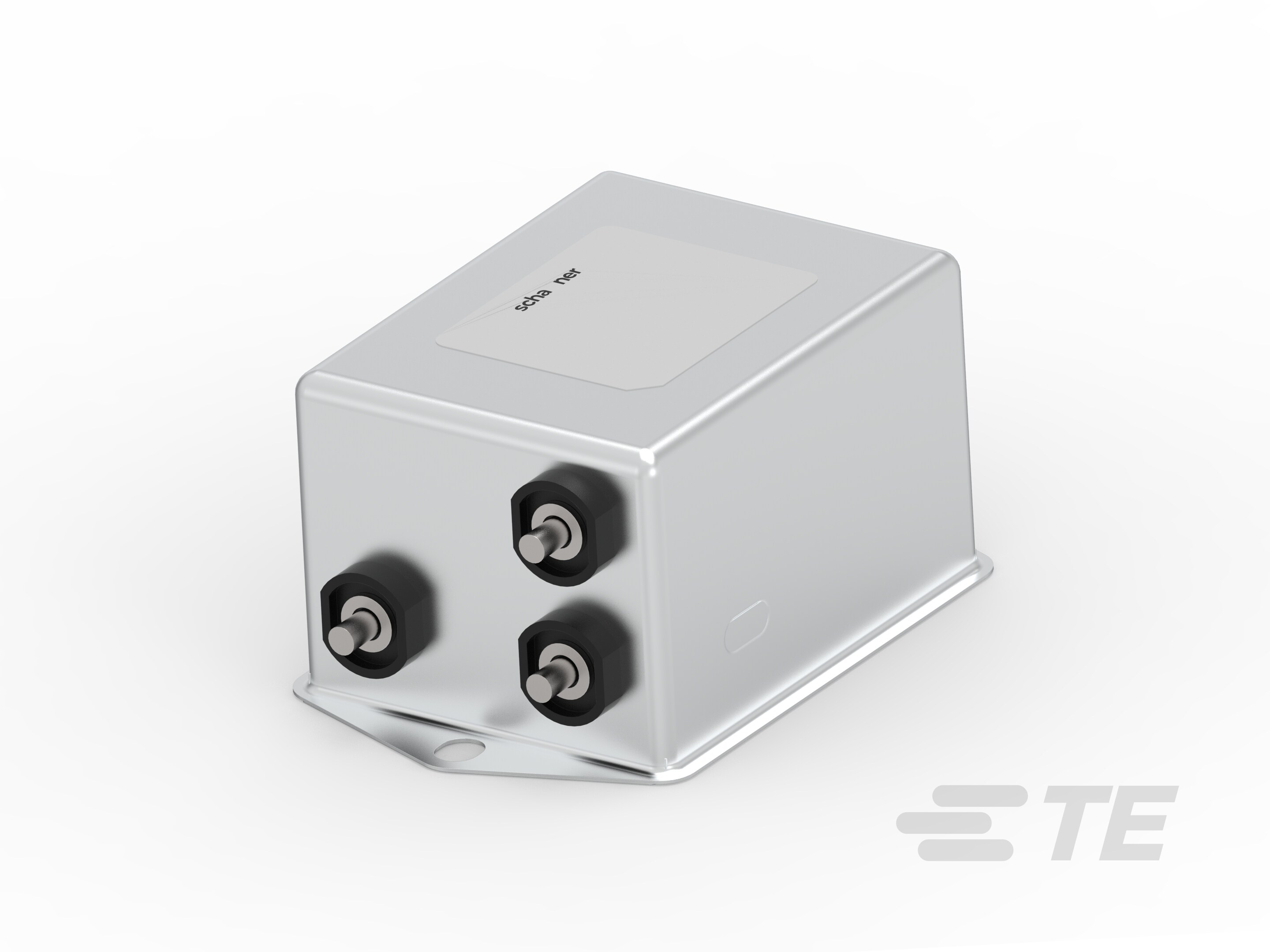

20 A Single Phase Filter, Litz Wire Input, Litz Wire Output, 250 VAC, Schaffner FN2030, Single Phase Filters

Technical Specifications

Parameters and characteristics for this part

SpecificationFN2030Z-20-07
ApplicationsMedical
Approval AgencyENEC, CSA, UR, UKCA, CE
ConfigurationSingle Stage
Current20 A
Filter SubtypeWye
Filter TypeThree Phase
Frequency - Operating (Max)400 Hz
Frequency - Operating (Min)0 Hz
Mounting TypeChassis Mount
Operating Temperature (Max)100 °C
Operating Temperature (Min)-25 °C
Termination StyleWire Leads
Voltage - Rated AC250 V
Voltage - Rated DC250 V
