U324-006
ActiveUSB CABLE, TYPE A PLUG TO TYPE A RECEPTACLE, 1.8 M, 6 FT, USB 3.0, BLUE

U324-006
ActiveUSB CABLE, TYPE A PLUG TO TYPE A RECEPTACLE, 1.8 M, 6 FT, USB 3.0, BLUE
Description
General part information
U324-006

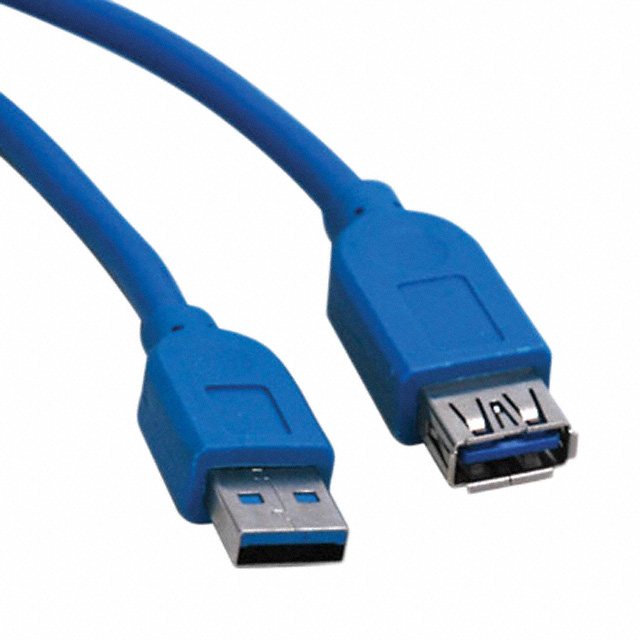

The U324-006 is a 6ft blue USB 3.0 SuperSpeed Extension Cable with an USB type-A plug at one end and USB type-A receptacle at other end. The extension cable brings significant performance enhancements to the ubiquitous USB standard, while remaining compatible with the billions of USB enabled devices currently deployed in the market. SuperSpeed USB will deliver 10x the data transfer rate of hi-speed USB, up to 5Gbps, as well as improved power efficiency. USB 3.0 utilizes a bi-directional data interface rather than USB 2.0's half-duplex arrangement, where data can only flow in one direction at a time, giving a ten-fold increase in theoretical bandwidth.
Technical Specifications
Parameters and characteristics for this part
| Specification | U324-006 |
|---|---|
| Color | Blue |
| Configuration | A Female to A Male |
| Features | Extension Cable, Data Transfer and Charge |
| Interface | USB 3.0, USB 3.x Gen 1, USB 5Gbps, Superspeed |
| Length | 6 ft |
| Specifications | USB 5Gbps (USB 3.0, USB 3.x Gen 1, Superspeed) |
| Transfer Rate | 5 Gbps |
| Wire Gauge | 24 AWG, 28 AWG |
