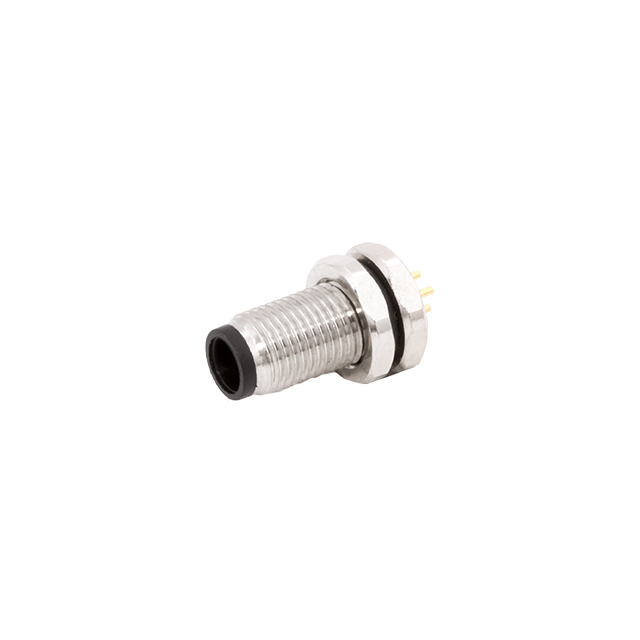

Specification	IPM-M5A4M-PC

Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating	1 A
Fastening Type	Threaded
Mounting Feature	Front Side Nut
Mounting Type	Panel Mount
Number of Positions	4
Operating Temperature (Max)	90 °C
Operating Temperature (Min)	-25 °C
Orientation	A
Shielding	Unshielded
Termination	Solder
Voltage Rating	60 V
