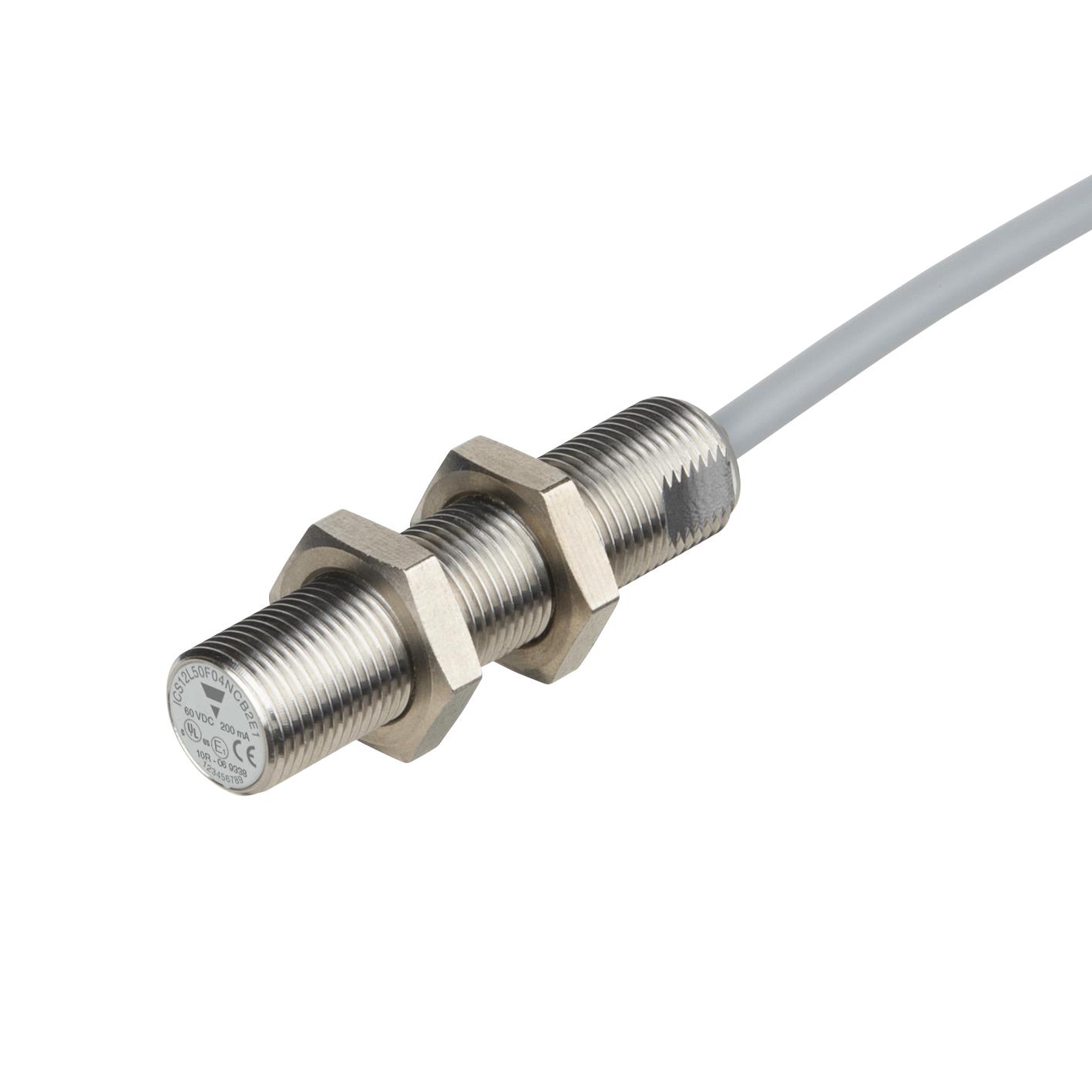

ICS12L50F04PCB2E1
ActiveCarlo Gavazzi Inc.
SENSOR: INDUCTIVE; OUT: PNP / NC; 4MM; 8÷60VDC; M12; 2M; IP67; 200MA
ICS12L50F04PCB2E1
ActiveCarlo Gavazzi Inc.
SENSOR: INDUCTIVE; OUT: PNP / NC; 4MM; 8÷60VDC; M12; 2M; IP67; 200MA
Description
General part information
ICS12L50F04PCB2E1
SENSOR: INDUCTIVE; OUT: PNP / NC; 4MM; 8÷60VDC; M12; 2M; IP67; 200MA
Technical Specifications
Parameters and characteristics for this part
| Specification | ICS12L50F04PCB2E1 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP68, IP67, IP69K |
| Material - Body | Stainless Steel |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | PNP-NC, 4-Wire |
| Package / Case | Threaded - M12, Cylinder |
| Sensing Distance | 0.157 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable |
| Voltage - Supply (Maximum) | 60 V |
| Voltage - Supply (Minimum) | 8 V |
