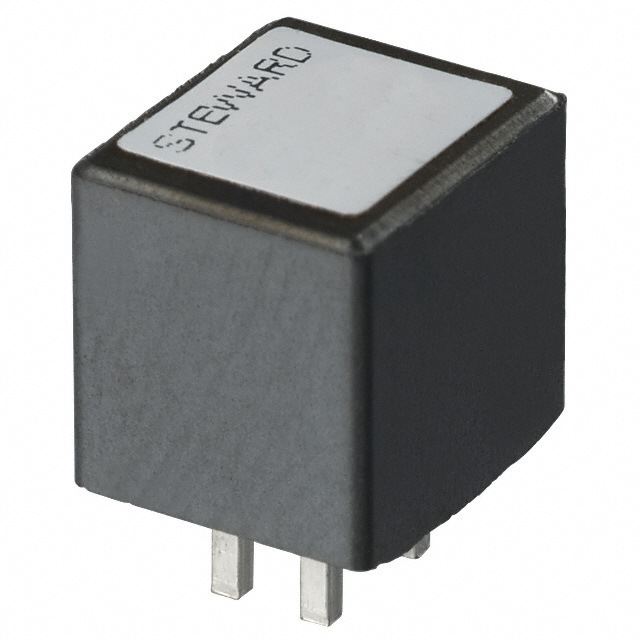

CM3440Z171B-00
ObsoleteLaird Technologies EMI
CMC 20A 2LN 170 OHM TH
CM3440Z171B-00
ObsoleteLaird Technologies EMI
CMC 20A 2LN 170 OHM TH
Description
General part information
CM3440Z171B-00
2 Line Common Mode Choke Through Hole 170 Ohms @ 100 MHz 20A DCR 1mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CM3440Z171B-00 |
|---|---|
| Current Rating (Max) | 20 A |
| DC Resistance (DCR) (Max) | 1 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.367 in |
| Impedance | 170 Ohms |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 0.395 in |
| Size / Dimension Width | 0.335 in |
