Description
General part information

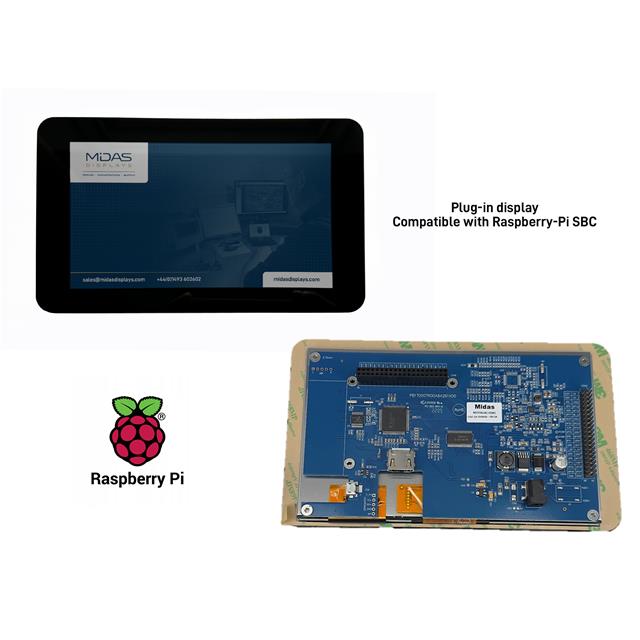

MDT0700JISC-HDMIC
Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color LCD DVI, HDMI 7" (177.80mm) 1024 x 600
Technical Specifications
Parameters and characteristics for this part
| Specification | MDT0700JISC-HDMIC |
|---|---|
| Background Color | Black |
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | TFP401 |
| Diagonal Screen Size | 7 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color LCD |
| Dot Pitch Height | 0.14 mm |
| Dot Pitch Width | 0.15 mm |
| Dot Pixels (Horizontal) | 1024 pixels |
| Dot Pixels (Vertical) | 600 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | HDMI, DVI |
| Touchscreen | Capacitive |
| Viewing Area Height | 86.92 mm |
| Viewing Area Width | 155.22 mm |
