BA3002
ActivePasternack

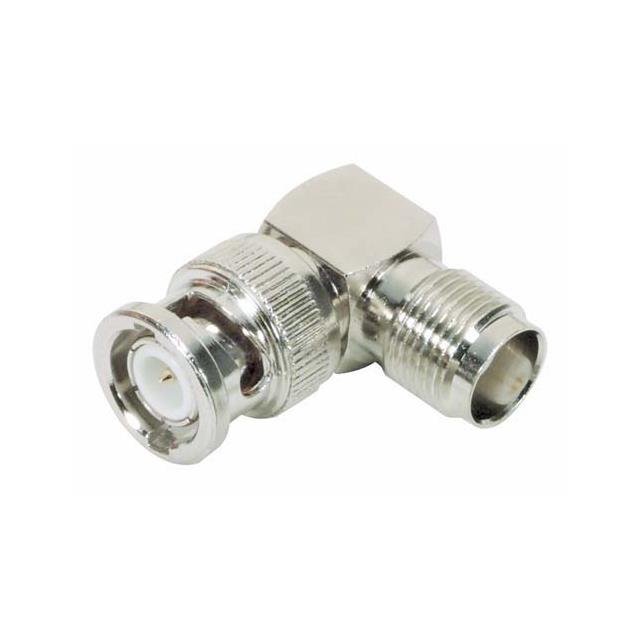

ADAPTOR BNC M / TNC F RA
BA3002
ActivePasternack
ADAPTOR BNC M / TNC F RA
Description
General part information
BA3002
Adapter Coaxial Connector BNC Plug, Male Pin To TNC Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | BA3002 |
|---|---|
| Adapter Series | BNC to TNC |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Male Pin, BNC Plug |
| Convert To (Adapter End) | TNC Jack, Female Socket |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Fastening Type | Threaded, Bayonet Lock |
| Frequency - Max | 4 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Style | Right Angle |
