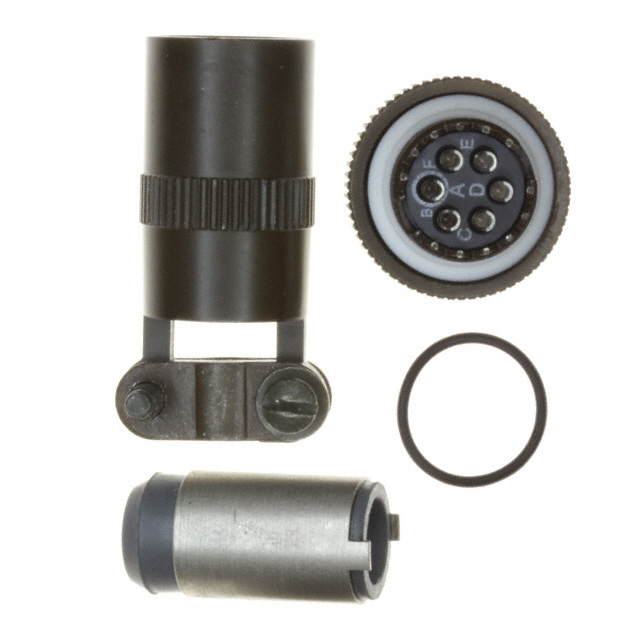

Specification	85106JC106P50

Applications	Military, Aviation, Industrial
Backshell Material, Plating	Aluminum Alloy, Olive Drab Cadmium
Cable Opening (Max)	0.266 in
Cable Opening (Min)	0.234 in
Color	Olive Green
Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating	7.5 A
Fastening Type	Bayonet Lock
Features	Coupling Nut, Cable Clamp, Backshell
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP68, IP67
Insert Material	Neoprene
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Primary Material	Metal
Qualification	MIL-DTL-26482
Shell Finish	Olive Green Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert Length	10 mm
Shell Size - Insert Width	6 mm
Shielding	Shielded
Termination	Solder Cup
