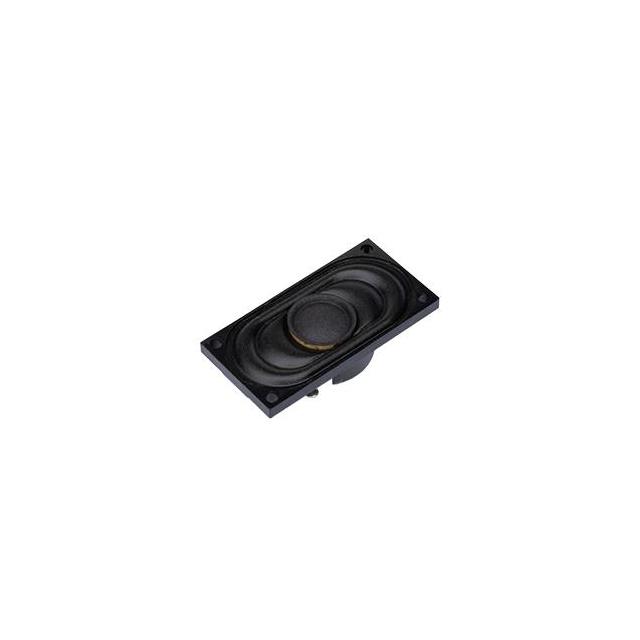

CDS-4020-16
ActiveSame Sky (Formerly CUI Devices)
SPEAKER 16OHM 1.5W TOP PORT 90DB
CDS-4020-16
ActiveSame Sky (Formerly CUI Devices)
SPEAKER 16OHM 1.5W TOP PORT 90DB
Description
General part information
CDS-4020-16
16 Ohms General Purpose Speaker 1.5 W 440 Hz ~ 20 kHz Top Oval, Rectangular Frame
Technical Specifications
Parameters and characteristics for this part
| Specification | CDS-4020-16 |
|---|---|
| Distortion Rating | 5 % |
| Distortion Rating Power | 1.5 W |
| Efficiency - dBA | 90 dBA |
| Efficiency - Testing Length | 100 mm |
| Efficiency - Testing Power | 100 mW |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 550 Hz |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 440 Hz |
| Height - Seated (Max) | 0.315 in |
| Impedance | 16 Ohms |
| Material - Cone | Cloth |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Port Location | Top |
| Power - Max | 3 VA |
| Power - Rated | 1.5 W |
| Shape | Oval, Rectangular Frame |
| Size / Dimension Length | 1.575 in |
| Size / Dimension Width | 0.787 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
