321286
ActiveTE Connectivity AMP Connectors
CONNECTOR TERMINALS SPLICE 10-12AWG COPPER YELLOW TIN LOOSE
321286
ActiveTE Connectivity AMP Connectors
CONNECTOR TERMINALS SPLICE 10-12AWG COPPER YELLOW TIN LOOSE
Description
General part information
321286

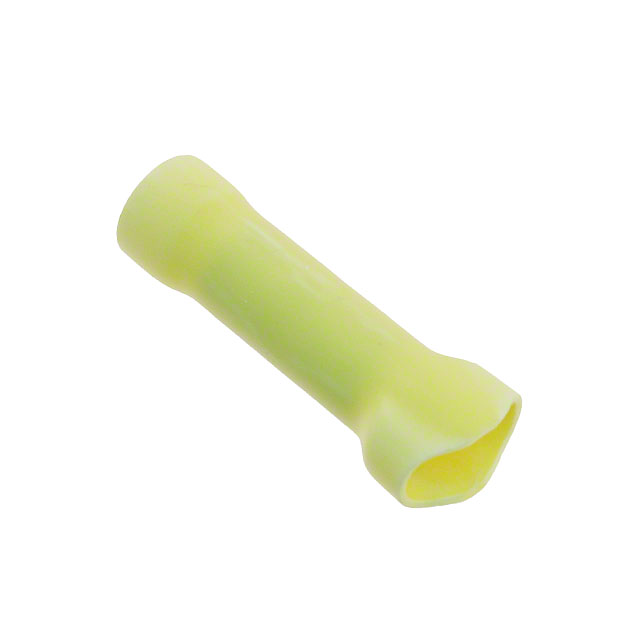

Butt Splice, 12 – 10 AWG, 3 – 6 mm² Wire, Serrated, 5180 – 13100 CMA, Copper, Yellow, 29.46 mm [1.16 in] Length, Loose Piece, PLASTI-GRIP
Technical Specifications
Parameters and characteristics for this part
| Specification | 321286 |
|---|---|
| Color | Yellow |
| Features | Serrated Mating Area |
| Insulation | Fully Insulated |
| Number of Wire Entries | 2 |
| Terminal Type | Inline, Individual Openings, Butt Splice |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
