NSYPLA12104TG
ActiveSCHNEIDER ELECTRIC
ENCLOSURE GRY 49.21"L X 39.37"W
NSYPLA12104TG
ActiveSCHNEIDER ELECTRIC
ENCLOSURE GRY 49.21"L X 39.37"W
Description
General part information
NSYPLA12104TG

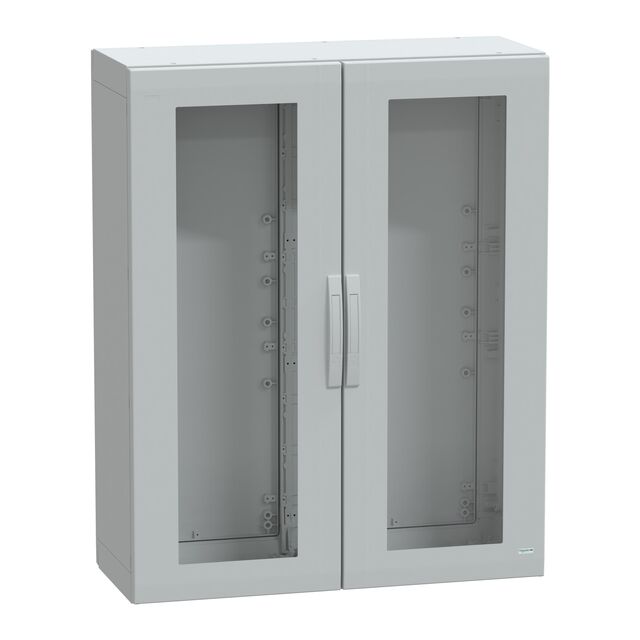

Enclosure Fiberglass/Polyester Gray, Clear Cover Hinged Door 49.213" L x 39.370" W (1250.00mm x 1000.00mm) X 16.535" (420.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | NSYPLA12104TG |
|---|---|
| Area (L x W) | 1938 in² |
| Color | Clear Cover, Gray |
| Container Type | Enclosure |
| Design | Hinged Door |
| Height | 16.535 in |
| Material | Fiberglass, Polyester |
| Ratings | 2, IP65, NEMA, 1, 12, 13 |
| Size / Dimension Length | 49.213 in |
| Size / Dimension Width | 39.37 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
