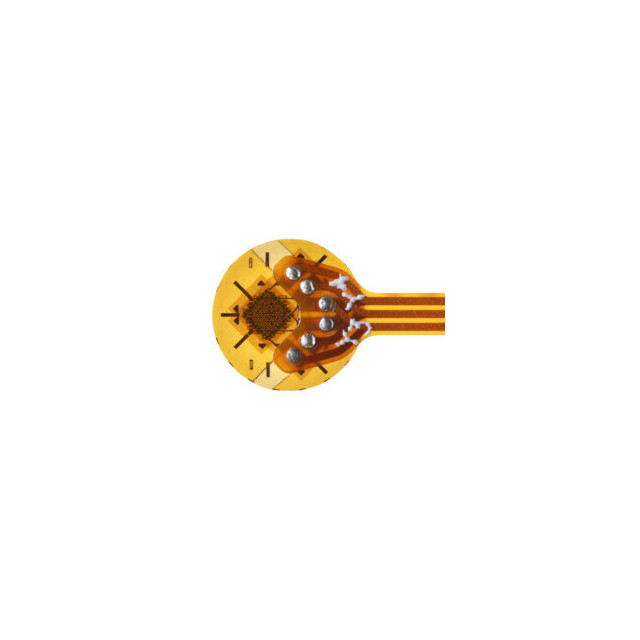

MMF405057
ActiveMicro-Measurements (Division of Vishay Precision Group)
STRAIN GAUGE 120OHM ROSETTE 5/PK
MMF405057
ActiveMicro-Measurements (Division of Vishay Precision Group)
STRAIN GAUGE 120OHM ROSETTE 5/PK
Description
General part information
MMF405057
STRAIN GAUGE 120OHM ROSETTE 5/PK
Technical Specifications
Parameters and characteristics for this part
| Specification | MMF405057 |
|---|---|
| Length - Active | 0.039 in |
| Length - Overall | 0.2 in |
| Length - Overall Pattern | 0.144 in |
| Length - Overall Pattern (mm) | 3.66 mm |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -50 °C |
| Pattern Type | Stacked Rosette |
| Resistance | 120 Ohm |
| Resistance Tolerance (%) | 0.6 % |
| Strain Range | 3 % |
| Width - Active | 0.045 in |
| Width - Overall | 0.2 in |
| Width - Overall Pattern | 0.147 in |
