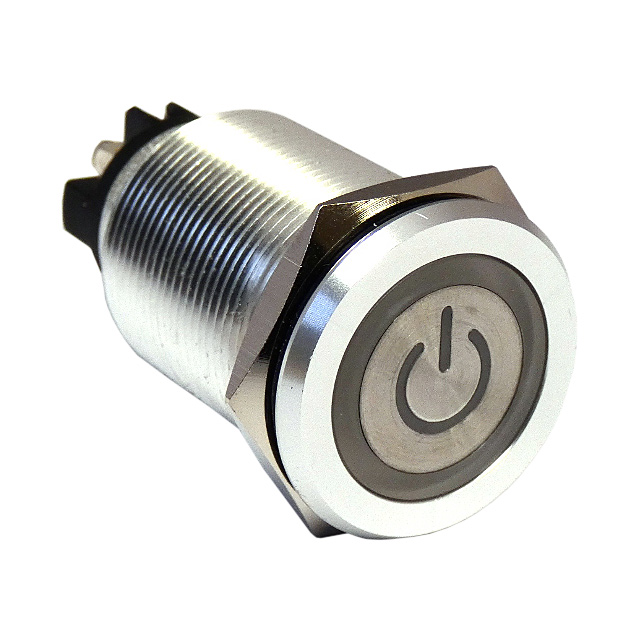

Specification	SW19SSL312

Actuator Marking	Power Symbol
Actuator Type	Round, Flush, Button
Circuit	DPST-NO/NC
Color	Red
Color - Actuator/Cap	Silver
Current Rating	5 A
Electrical Life (Cycles)	50000
Illumination Type	LED
Illumination Voltage (Nominal)	12 V
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Mechanical Life (Cycles)	1000000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-40 °C
Panel Cutout Diameter	19 mm
Panel Cutout Shape	Circular
Switch Function	On-Off, Off-On
Termination Style	Screw Terminal
Type	Standard, Illuminated
Voltage Rating - AC	250 V
