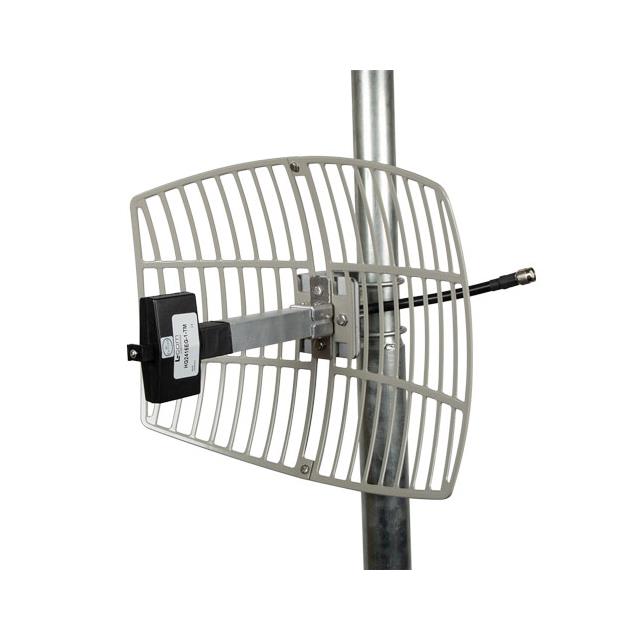

HG2415EG-1-TM
ActivePasternack
2.4 GHZ TO 2.5 GHZ 15 DBI GRID A
HG2415EG-1-TM
ActivePasternack
2.4 GHZ TO 2.5 GHZ 15 DBI GRID A
Description
General part information
HG2415EG-1-TM
RF ANTENNA 802.11b/g/n, ISM, Wi-Fi, WLAN Parabolic Grid TNC Male Mast Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HG2415EG-1-TM |
|---|---|
| Antenna Type | Parabolic Grid |
| Applications | WLAN, 802.11b/g/n, ISM, Wi-Fi |
| Features | 203.2mm, Cable |
| Frequency (Center/Band) | 2.45 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 15 dBi |
| Height (Max) | 7.8 in |
| Mounting Type | Mast Mount |
| Number of Bands | 1 |
| Power - Max | 100 VA |
| RF Family/Standard | WiFi, General ISM |
| Termination Type | TNC Male |
| VSWR | 1.5 |
