1827617-1
ActiveTE Connectivity AMP Connectors

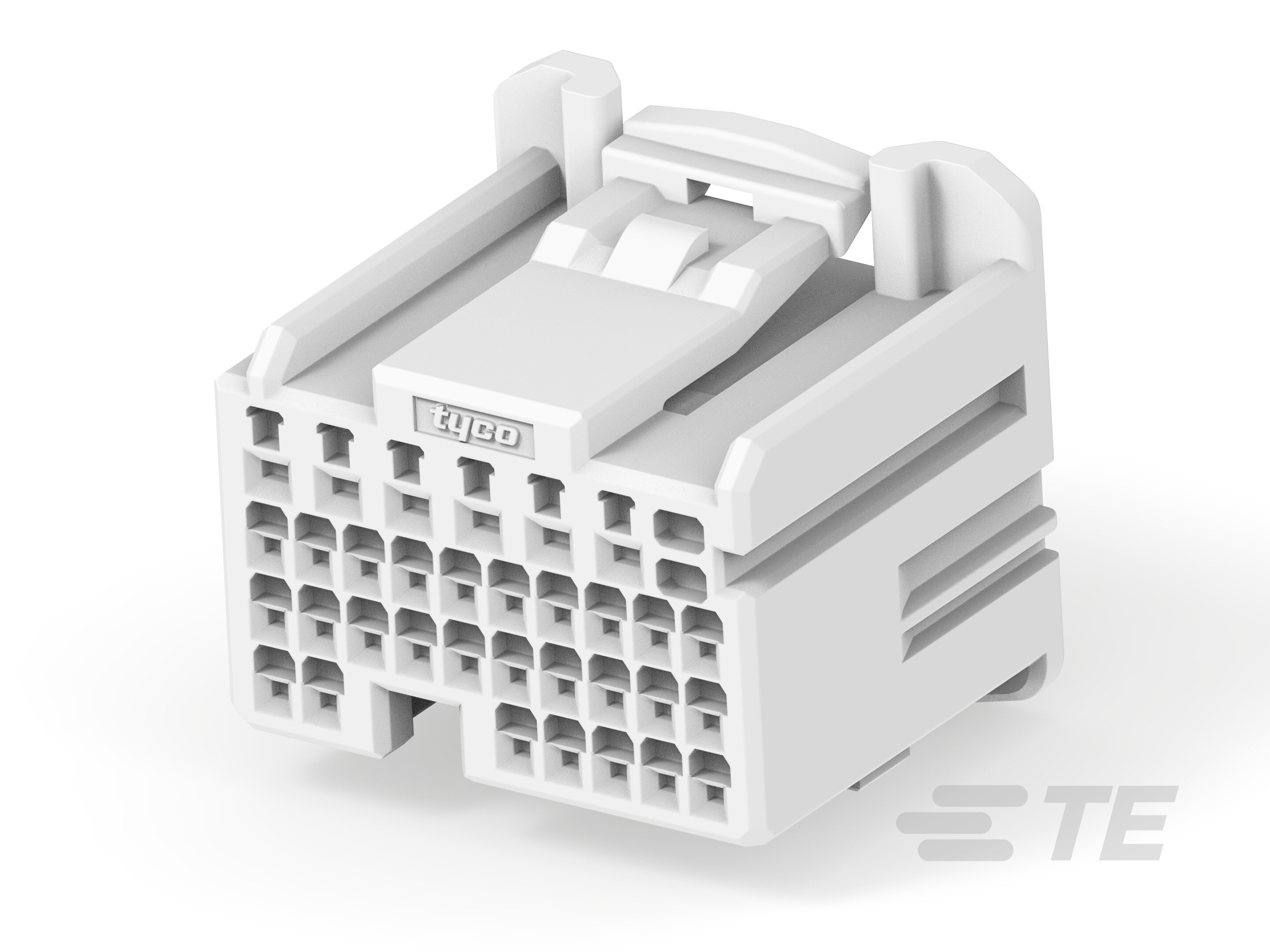

AUTOMOTIVE CONNECTORS 0.64 III/1.0 III 33POS PLUG ASSY
1827617-1
ActiveTE Connectivity AMP Connectors
AUTOMOTIVE CONNECTORS 0.64 III/1.0 III 33POS PLUG ASSY
Description
General part information
0.64/025 Connector System Series
33 Position Housing, Housing for Female Terminals, Wire-to-Board / Wire-to-Device, 0.64/025 Connector System
Technical Specifications
Parameters and characteristics for this part
| Specification | 1827617-1 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 33 |
| Number of Rows | 4 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
