14004-8
ActiveEaton - Electronics Division

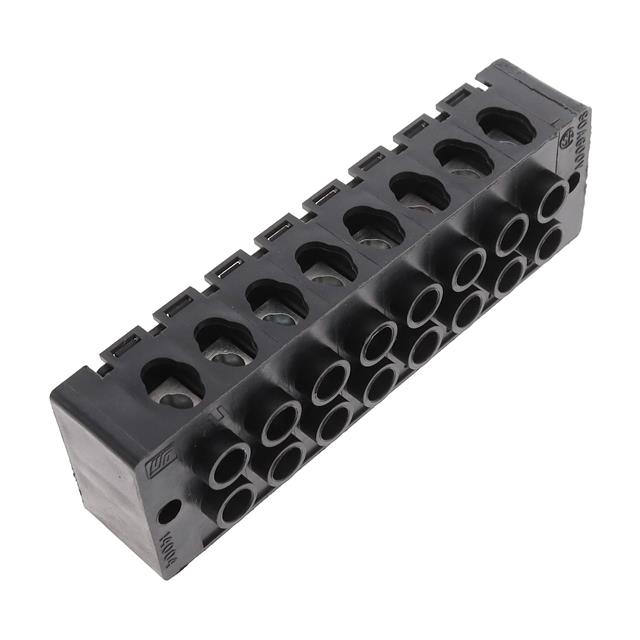

CONN BARRIER STRIP 8CIRC 0.5"
14004-8
ActiveEaton - Electronics Division
CONN BARRIER STRIP 8CIRC 0.5"
Description
General part information
14004-8
8 Circuit 0.500" (12.70mm) Barrier Block Connector Screws
Technical Specifications
Parameters and characteristics for this part
| Specification | 14004-8 |
|---|---|
| Barrier Type | Enclosed |
| Bottom Termination | Closed |
| Current Rating | 90 A |
| Mounting Type | Chassis, Panel |
| Number of Circuits | 8 |
| Number of Rows | 2 |
| Number of Wire Entries | 16 |
| Operating Temperature | 75 °C |
| Pitch | 0.5 in |
| Terminal Block Type | Barrier Block |
| Top Termination | Screws |
| Voltage Rating | 600 V |
| Wire Gauge (AWG) (Max) | 14 AWG |
| Wire Gauge (AWG) (Min) | 4 AWG |
