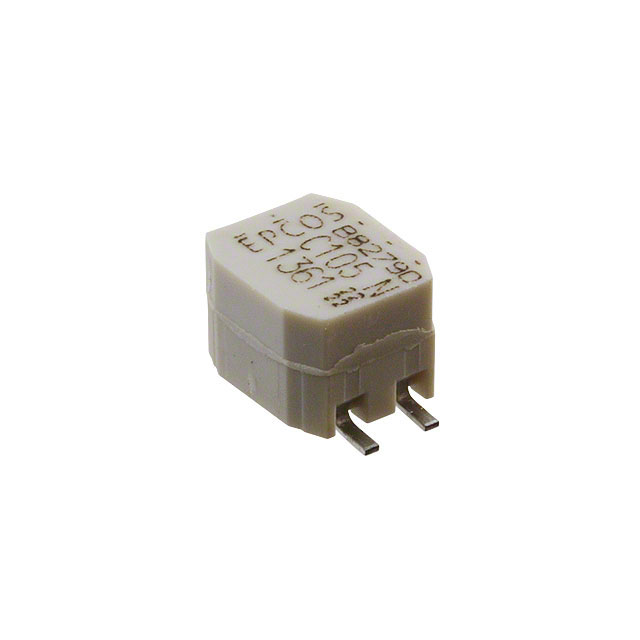

B82790C0474N215
ActiveEPCOS - TDK Electronics
CMC 470UH 500MA 2LN SMD AEC-Q200
B82790C0474N215
ActiveEPCOS - TDK Electronics
CMC 470UH 500MA 2LN SMD AEC-Q200
Description
General part information
B82790C0474N215
470 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 500mA DCR 170mOhm (Typ)
Technical Specifications
Parameters and characteristics for this part
| Specification | B82790C0474N215 |
|---|---|
| Current Rating (Max) | 500 mA |
| DC Resistance (DCR) (Max) | 170 mOhm |
| DC Resistance (DCR) (Typ) | 170 mOhm |
| Filter Type | Signal Line |
| Height (Max) | 0.205 " |
| Inductance | 470 µH |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 Gull Wing, Horizontal |
| Package Leads | 4 Leads |
| Package Name | Horizontal |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.28 in |
| Size / Dimension Width | 0.236 in |
| Voltage Rating - AC | 42 V |
| Voltage Rating - DC | 80 VDC |
