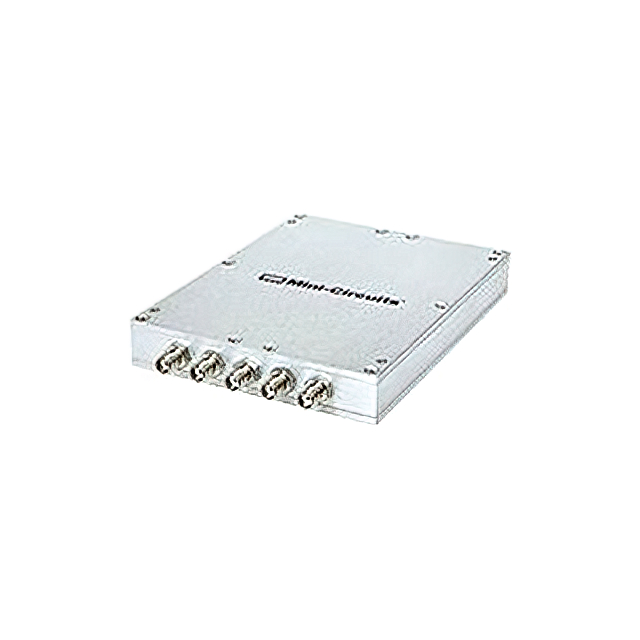

ZN4PD1-63-S+
ActiveMini-Circuits
PWR DIV / SMA / ROHS
ZN4PD1-63-S+
ActiveMini-Circuits
PWR DIV / SMA / ROHS
Description
General part information
ZN4PD1-63-S+
RF Power Divider 2 GHz ~ 6 GHz Isolation (Min) 17dB, 1.2 VSWR (Typ), 5° Imbalance (Max) Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | ZN4PD1-63-S+ |
|---|---|
| Frequency (Max) | 6 GHz |
| Frequency (Min) | 2 GHz |
| Imbalance (Max) | 5 ° |
| Insertion Loss | 0.7 dB |
| Isolation (Min) | 17 dB |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Height | 0.68 in |
| Size / Dimension Length | 4.5 in |
| Size / Dimension Width | 3.5 in |
| VSWR (Max) | 1.2 |
