Specification	AT04-4P-BM03

Applications	Industrial, General Purpose, Automotive
Connector Type	Receptacle
Contact Finish - Mating	Nickel
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating	13 A
Fastening Type	Latch Holder
Features	Board Lock
Ingress Protection	IP67
Insulation Color	Black
Insulation Height	0.835 in
Insulation Material	Thermoplastic
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder

AT04-4P Series

Part	Note	Operating Temperature (Max)	Operating Temperature (Min)	Contact Type	Fastening Type	Features	Mounting Type	Contact Termination	Number of Positions	Connector Type	Insulation Material	Number of Rows	Color	Contact Shape	Shrouding	Current Rating	Insulation Color	Contact Material	Contact Finish - Mating	Insulation Height	Ingress Protection	Termination	Style	Number of Positions Loaded	Applications
McGill Microwave Systems AT04-4P-CL06	Contacts Not Included	125 °C	-55 °C	Male Pin	Latch Holder	Mounting Flange Sealed	Panel Mount	Crimp	4	Receptacle	Thermoplastic	2	Black
McGill Microwave Systems AT04-4P-GRN	Contacts Not Included	125 °C	-55 °C	Male Pin	Latch Holder	Sealed	Free Hanging (In-Line)	Crimp	4	Receptacle	Thermoplastic	2	Green
McGill Microwave Systems AT04-4P-ORG	Contacts Not Included	125 °C	-55 °C	Male Pin	Latch Holder	Sealed	Free Hanging (In-Line)	Crimp	4	Receptacle	Thermoplastic	2	Orange

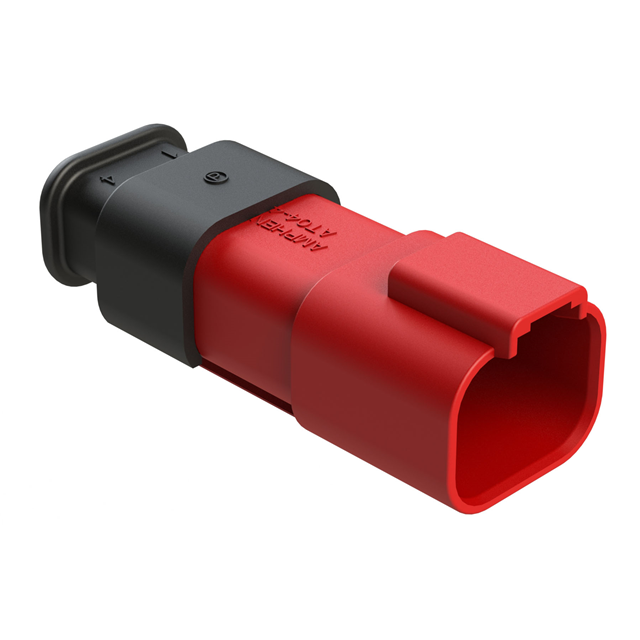

McGill Microwave Systems AT04-4P-SR02RED		125 °C	-55 °C	Male Pin	Latch Holder	Cap (Cover) IP68 IP69K Reduced Wire Seals Strain Relief	Free Hanging (In-Line)	Crimp	4	Receptacle	Thermoplastic	2	Red
McGill Microwave Systems AT04-4P-BM04		125 °C	-55 °C	Male Pin	Latch Holder	Board Lock Potting Wall	Through Hole		4	Receptacle	Thermoplastic	2		Circular	Shrouded - 4 Wall	13 A	Black	Copper Alloy	Nickel	0.835 in	IP67	Solder	Board Cable/Wire	All	Automotive General Purpose Industrial
McGill Microwave Systems AT04-4P-RED	Contacts Not Included	125 °C	-55 °C	Male Pin	Latch Holder	Sealed	Free Hanging (In-Line)	Crimp	4	Receptacle	Thermoplastic	2	Red

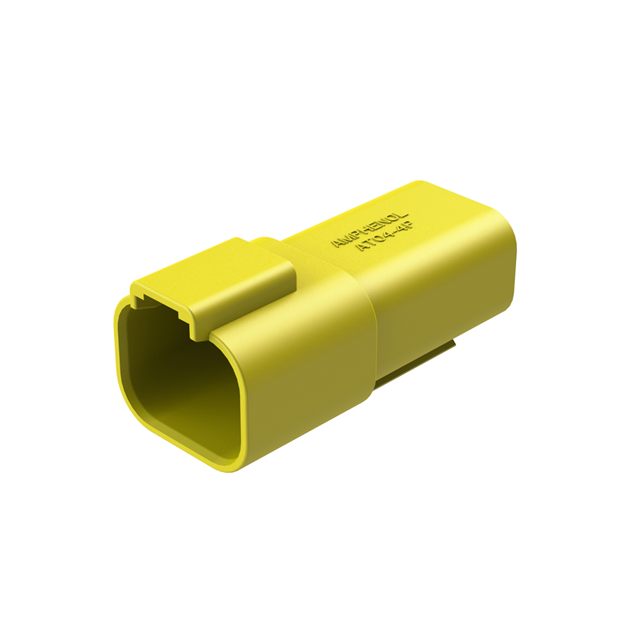

McGill Microwave Systems AT04-4P-YEL	Contacts Not Included	125 °C	-55 °C	Male Pin	Latch Holder	Sealed	Free Hanging (In-Line)	Crimp	4	Receptacle	Thermoplastic	2	Yellow

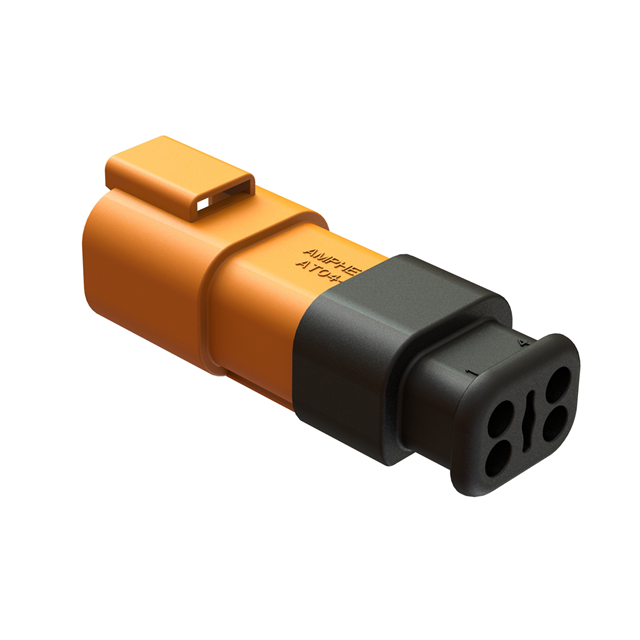

McGill Microwave Systems AT04-4P-SR01ORG		125 °C	-55 °C	Male Pin	Latch Holder	Cap (Cover) IP68 IP69K Sealed Strain Relief	Free Hanging (In-Line)	Crimp	4	Receptacle	Thermoplastic	2	Orange
McGill Microwave Systems AT04-4P-L012	Contacts Not Included	125 °C	-55 °C	Male Pin	Latch Holder	Mounting Flange Sealed	Panel Mount	Crimp	4	Receptacle	Thermoplastic	2	Gray

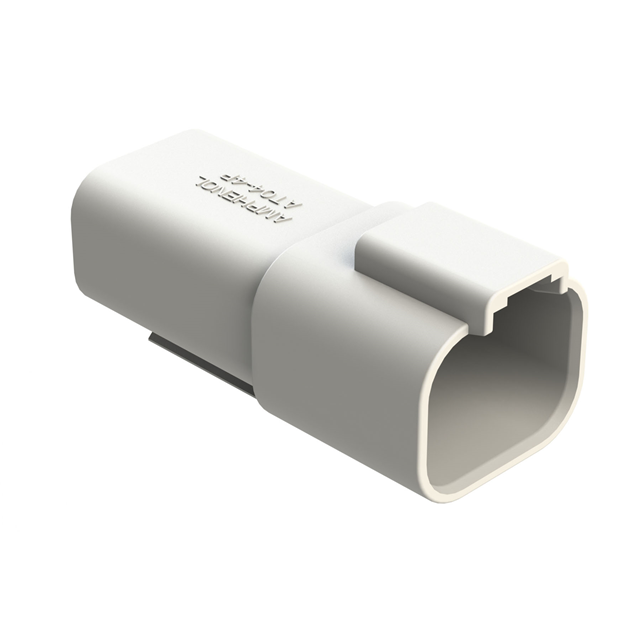

McGill Microwave Systems AT04-4P-WHT	Contacts Not Included	125 °C	-55 °C	Male Pin	Latch Holder	Sealed	Free Hanging (In-Line)	Crimp	4	Receptacle	Thermoplastic	2	White
