42778-2
ActiveTE Connectivity AMP Connectors
CONN SPLICE 600-3000 CMA CRIMP
42778-2
ActiveTE Connectivity AMP Connectors
CONN SPLICE 600-3000 CMA CRIMP
Description
General part information

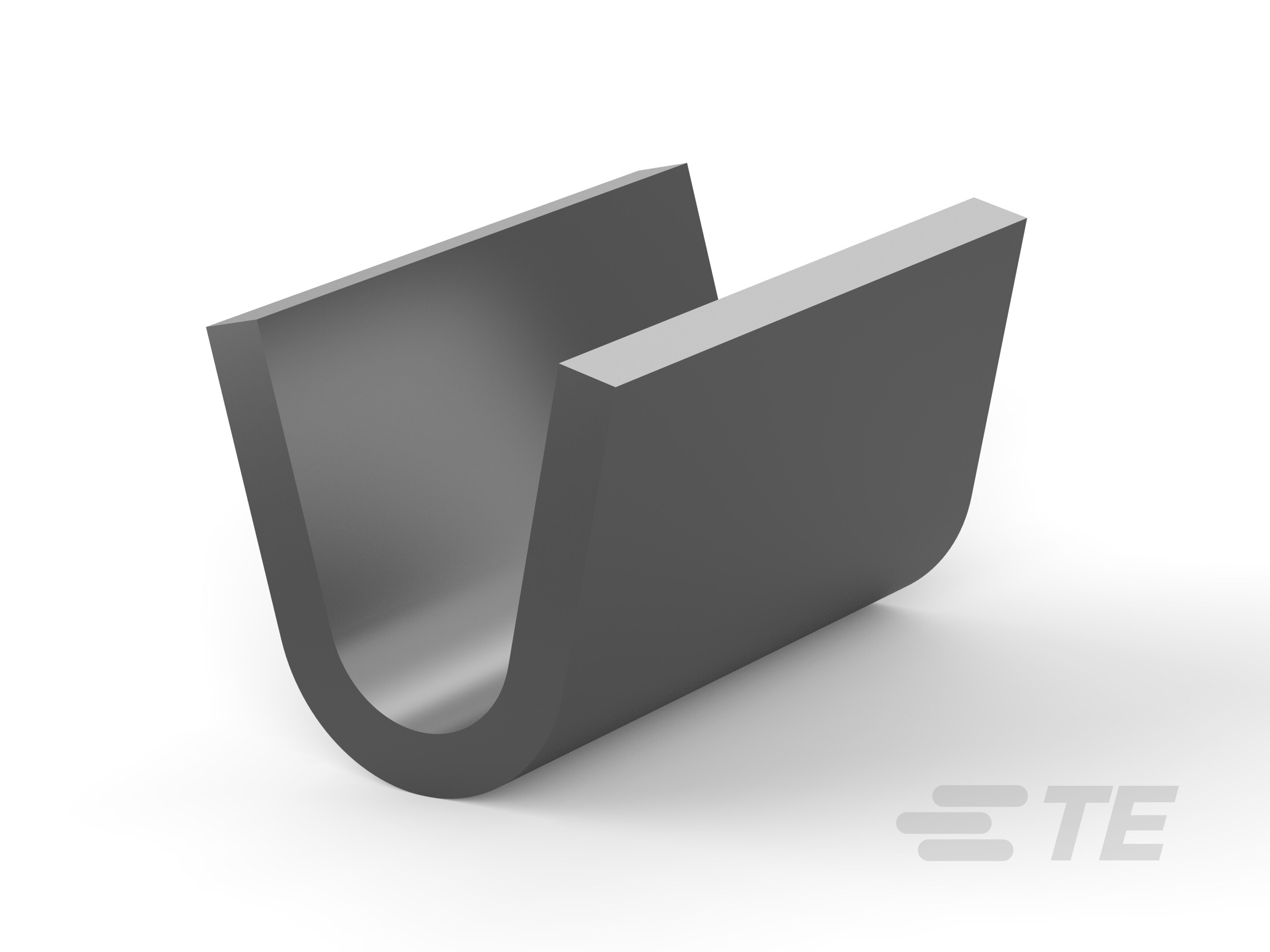

42778-2
Thru Splice, 22 – 15 AWG, .3 – 1.5 mm² Wire, 3 Splice Capacity, Serrated, 600 – 3000 CMA, Brass, 5 Serration, 5.72 mm [.225 in] Length, AMPLIVAR
Technical Specifications
Parameters and characteristics for this part
| Specification | 42778-2 |
|---|---|
| Features | Serrated Mating Area |
| Insulation | Non-Insulated |
| Number of Wire Entries | Varies by Wire Size |
| Terminal Type | Open Band, Crimpband |
| Termination | Crimp |
| Wire Gauge (CMA) (Max) | 3000 CMA |
| Wire Gauge (CMA) (Min) | 600 CMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
