177913-1
ActiveTE Connectivity AMP Connectors

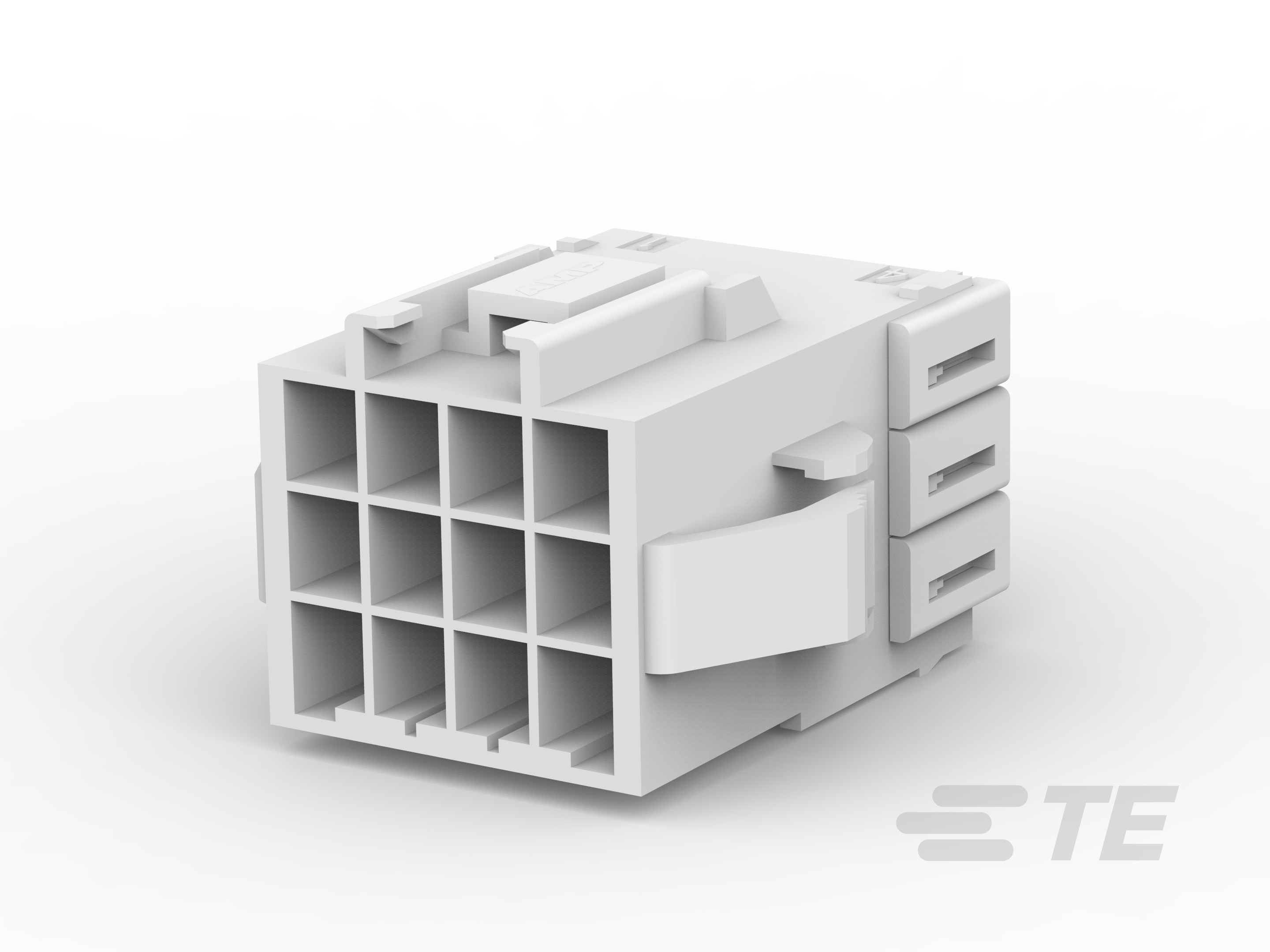

POWER DBL LOCK CAP HSG P/M 12P
177913-1
ActiveTE Connectivity AMP Connectors
POWER DBL LOCK CAP HSG P/M 12P
Description
General part information
177913-1
12 Position, Cap, Housing, Crimp, Wire-to-Panel / Wire-to-Wire, UL 94V-0, 3.96 mm [.156 in] Centerline, 3 Row, 300 VAC, Power Double Lock
Technical Specifications
Parameters and characteristics for this part
| Specification | 177913-1 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Latch Holder |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 12 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch | 0.156 in |
| Row Spacing | 0.181 in |
