ANT-5GW-SPNF1
ActiveTE Connectivity AMP Connectors
ANTENNA 5G WB CELL DOME IP67 N JACK
ANT-5GW-SPNF1
ActiveTE Connectivity AMP Connectors
ANTENNA 5G WB CELL DOME IP67 N JACK
Description
General part information
ANT-5GW-SPNF1

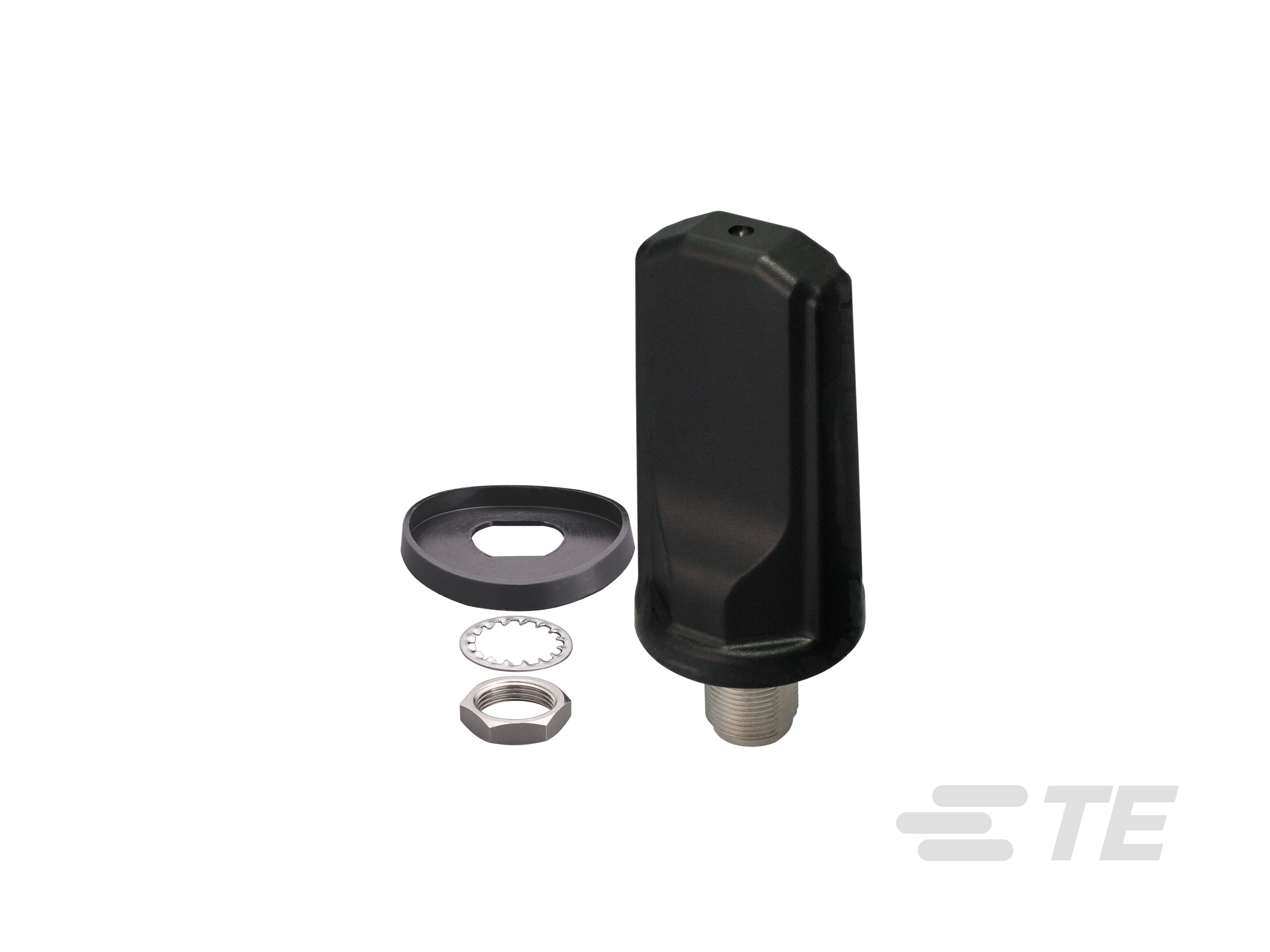

Dome/Puck Antenna, Wide Band, 5G / Cellular / LTE, External Mount, Stud/Screw/Lug Mount, N-type, Omnidirectional, Single Port, > 6 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-5GW-SPNF1 |
|---|---|
| Antenna Type | Module |
| Applications | 5G, 4G, LTE, 3G, 2G |
| Frequency (Center/Band) | 4.7GHz, 750.5MHz, 2.593GHz, 3.625GHz, 875.5MHz, 3.95GHz, 657.5MHz, 3.55GHz, 2.35GHz, 1.955GHz |
| Frequency (Center/Band) - 1 | 657.5 MHz |
| Frequency (Center/Band) - 10 | 4.7 GHz |
| Frequency (Center/Band) - 2 | 750.5 MHz |
| Frequency (Center/Band) - 3 | 875.5 MHz |
| Frequency (Center/Band) - 4 | 1.955 GHz |
| Frequency (Center/Band) - 5 | 2.35 GHz |
| Frequency (Center/Band) - 6 | 2.593 GHz |
| Frequency (Center/Band) - 7 | 3.55 GHz |
| Frequency (Center/Band) - 8 | 3.625 GHz |
| Frequency (Center/Band) - 9 | 3.95 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 698 MHz |
| Frequency Range (Band 1) Minimum | 617 MHz |
| Frequency Range (Band 10) Maximum | 5 GHz |
| Frequency Range (Band 10) Minimum | 4.4 GHz |
| Frequency Range (Band 2) Maximum | 803 MHz |
| Frequency Range (Band 2) Minimum | 698 MHz |
| Frequency Range (Band 3) Maximum | 960 MHz |
| Frequency Range (Band 3) Minimum | 791 MHz |
| Frequency Range (Band 4) Maximum | 2.2 GHz |
| Frequency Range (Band 4) Minimum | 1.71 GHz |
| Frequency Range (Band 5) Maximum | 2.4 GHz |
| Frequency Range (Band 5) Minimum | 2.3 GHz |
| Frequency Range (Band 6) Maximum | 2.69 GHz |
| Frequency Range (Band 6) Minimum | 2.496 GHz |
| Frequency Range (Band 7) Maximum | 3.8 GHz |
| Frequency Range (Band 7) Minimum | 3.3 GHz |
| Frequency Range (Band 8) Maximum | 3.7 GHz |
| Frequency Range (Band 8) Minimum | 3.55 GHz |
| Frequency Range (Band 9) Maximum | 4.2 GHz |
| Frequency Range (Band 9) Minimum | 3.7 GHz |
| Gain | 8.4 dBi, 3.3 dBi, 5.1 dBi, 4.5 dBi, 6.5 dBi, 6.8 dBi, 1.3 dBi |
| Height (Max) | 2.787 in |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Number of Bands | 10 |
| Power - Max | 10 VA |
| RF Family/Standard | Cellular |
| Termination | N Type Female |
| VSWR | 3.6, 1.6, 4.1, 7, 3, 1.7, 1.8 |
