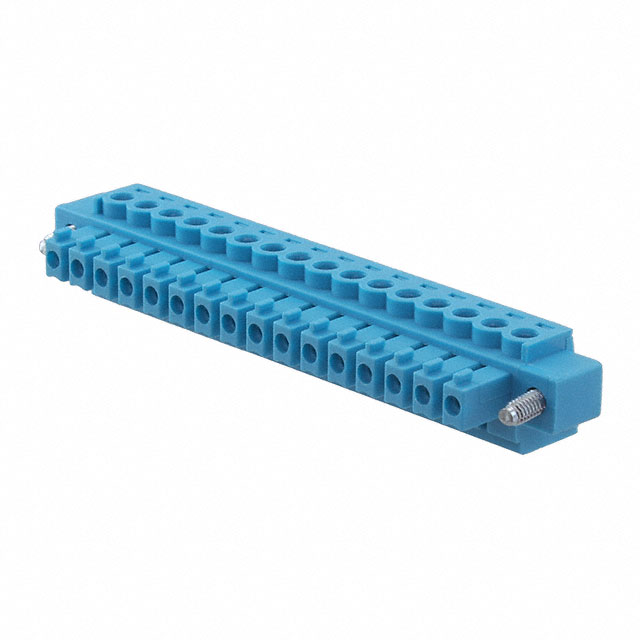

Specification	TBP02P1W-381-16BE

Color	Blue
Contact Material	Copper Alloy
Contact Mating Finish	Nickel
Current - IEC	7 A
Current - UL	8 A
Features	Mating Flange
Housing Material	Nylon 6/6, Polyamide, PA66
Insulation Height	0.441 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	16
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.15 in
Plug Wire Entry Angle	180 °
Positions Per Level	16
Screw Size	M2
Termination Style	Screw - Leaf Spring, Wire Guard
Torque - Screw	0.2 Nm
Type	Female Sockets, Plug
Voltage - IEC	250 V
Voltage - UL	300 V
Wire Gauge or Range - AWG (Max)	28 AWG
Wire Gauge or Range - AWG (Min)	16 AWG
Wire Gauge or Range - mm²	1.5 mm²
Wire Strip Length	7 mm

TBP02P1 Series

Part	Screw Size	Contact Material	Type	Wire Gauge or Range - mm²	Plug Wire Entry Angle	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Positions Per Level	Current - UL	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Color	Current - IEC	Voltage - IEC	Number of Levels	Voltage - UL	Pitch	Housing Material	Contact Mating Finish	Torque - Screw	Insulation Height	Mounting Type	Wire Strip Length	Material Flammability Rating	Number of Positions	Features
Same Sky (Formerly CUI Devices) TBP02P1-381-08BE	M2	Copper Alloy	Female Sockets Plug	1.5 mm²	180 °	16 AWG	28 AWG	8	8 A	Screw - Leaf Spring Wire Guard	-40 °C	105 °C	Blue	7 A	250 V	1	300 V	0.15 in	Nylon 6/6 PA66 Polyamide	Nickel	0.2 Nm	0.441 in	Free Hanging (In-Line)	7 mm	UL94 V-0	8
Same Sky (Formerly CUI Devices) TBP02P1W-381-06BE			Female Sockets Plug	1.5 mm²	180 °	16 AWG	28 AWG	6	8 A	Screw - Leaf Spring Wire Guard	-40 °C	105 °C	Blue	7 A	250 V	1	300 V	0.15 in		Nickel			Free Hanging (In-Line)			6	Mating Flange
Same Sky (Formerly CUI Devices) TBP02P1-381-04BE			Female Sockets Plug	1.5 mm²	180 °	16 AWG	28 AWG	4	8 A	Screw - Leaf Spring Wire Guard	-40 °C	105 °C	Blue	7 A	250 V	1	300 V	0.15 in		Nickel			Free Hanging (In-Line)			4	Groove Guide
Same Sky (Formerly CUI Devices) TBP02P1-381-12BE	M2	Copper Alloy	Female Sockets Plug	1.5 mm²	180 °	16 AWG	28 AWG	12	8 A	Screw - Leaf Spring Wire Guard	-40 °C	105 °C	Blue	7 A	250 V	1	300 V	0.15 in	Nylon 6/6 PA66 Polyamide	Nickel	0.2 Nm	0.441 in	Free Hanging (In-Line)	7 mm	UL94 V-0	12
Same Sky (Formerly CUI Devices) TBP02P1W-381-03BE	M2	Copper Alloy	Female Sockets Plug	1.5 mm²	180 °	16 AWG	28 AWG	3	8 A	Screw - Leaf Spring Wire Guard	-40 °C	105 °C	Blue	7 A	250 V	1	300 V	0.15 in	Nylon 6/6 PA66 Polyamide	Nickel	0.2 Nm	0.441 in	Free Hanging (In-Line)	7 mm	UL94 V-0	3	Mating Flange
Same Sky (Formerly CUI Devices) TBP02P1-381-04BE	M2	Copper Alloy	Female Sockets Plug	1.5 mm²	180 °	16 AWG	28 AWG	4	8 A	Screw - Leaf Spring Wire Guard	-40 °C	105 °C	Blue	7 A	250 V	1	300 V	0.15 in	Nylon 6/6 PA66 Polyamide	Nickel	0.2 Nm	0.441 in	Free Hanging (In-Line)	7 mm	UL94 V-0	4	Groove Guide
Same Sky (Formerly CUI Devices) TBP02P1W-381-12BE	M2	Copper Alloy	Female Sockets Plug	1.5 mm²	180 °	16 AWG	28 AWG	12	8 A	Screw - Leaf Spring Wire Guard	-40 °C	105 °C	Blue	7 A	250 V	1	300 V	0.15 in	Nylon 6/6 PA66 Polyamide	Nickel	0.2 Nm	0.441 in	Free Hanging (In-Line)	7 mm	UL94 V-0	12	Mating Flange
Same Sky (Formerly CUI Devices) TBP02P1-381-05BE	M2	Copper Alloy	Female Sockets Plug	1.5 mm²	180 °	16 AWG	28 AWG	5	8 A	Screw - Leaf Spring Wire Guard	-40 °C	105 °C	Blue	7 A	250 V	1	300 V	0.15 in	Nylon 6/6 PA66 Polyamide	Nickel	0.2 Nm	0.441 in	Free Hanging (In-Line)	7 mm	UL94 V-0	5	Groove Guide
Same Sky (Formerly CUI Devices) TBP02P1-381-07BE	M2	Copper Alloy	Female Sockets Plug	1.5 mm²	180 °	16 AWG	28 AWG	7	8 A	Screw - Leaf Spring Wire Guard	-40 °C	105 °C	Blue	7 A	250 V	1	300 V	0.15 in	Nylon 6/6 PA66 Polyamide	Nickel	0.2 Nm	0.441 in	Free Hanging (In-Line)	7 mm	UL94 V-0	7
Same Sky (Formerly CUI Devices) TBP02P1-381-02BE			Female Sockets Plug	1.5 mm²	180 °	16 AWG	28 AWG	2	8 A	Screw - Leaf Spring Wire Guard	-40 °C	105 °C	Blue	7 A	250 V	1	300 V	0.15 in		Nickel			Free Hanging (In-Line)			2	Groove Guide
