Description
General part information

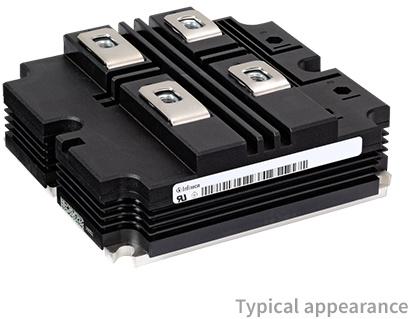

DD750S65K3NOSA1
6500 V IHV, 750 A 130mm DiodeIGBT modulewith EC3 - Diode - The best solution for your traction and industry applications. Predestined to be combined with IGBT3 products.
Technical Specifications
Parameters and characteristics for this part
| Specification | DD750S65K3NOSA1 |
|---|---|
| Diode Configuration | Independent |
| Diode Count | 2 |
| Mounting Type | Chassis Mount |
| Operating Temperature - Junction (Max) | 125 °C |
| Operating Temperature - Junction (Min) | -50 °C |
| Package / Case | Module |
| Package Name | A-IHV130-6 |
| Speed | Standard Recovery |
| Speed - Fast Recovery (Minimum) | 200 mA, 500 ns |
| Speed - Recovery Current | 200 mA, 200 mA |
| Speed - Recovery Time | 500 ns |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 6500 V |
| Voltage - Forward (Vf) (Max) | 3.5 V |
