TBP05P1-762-06BE

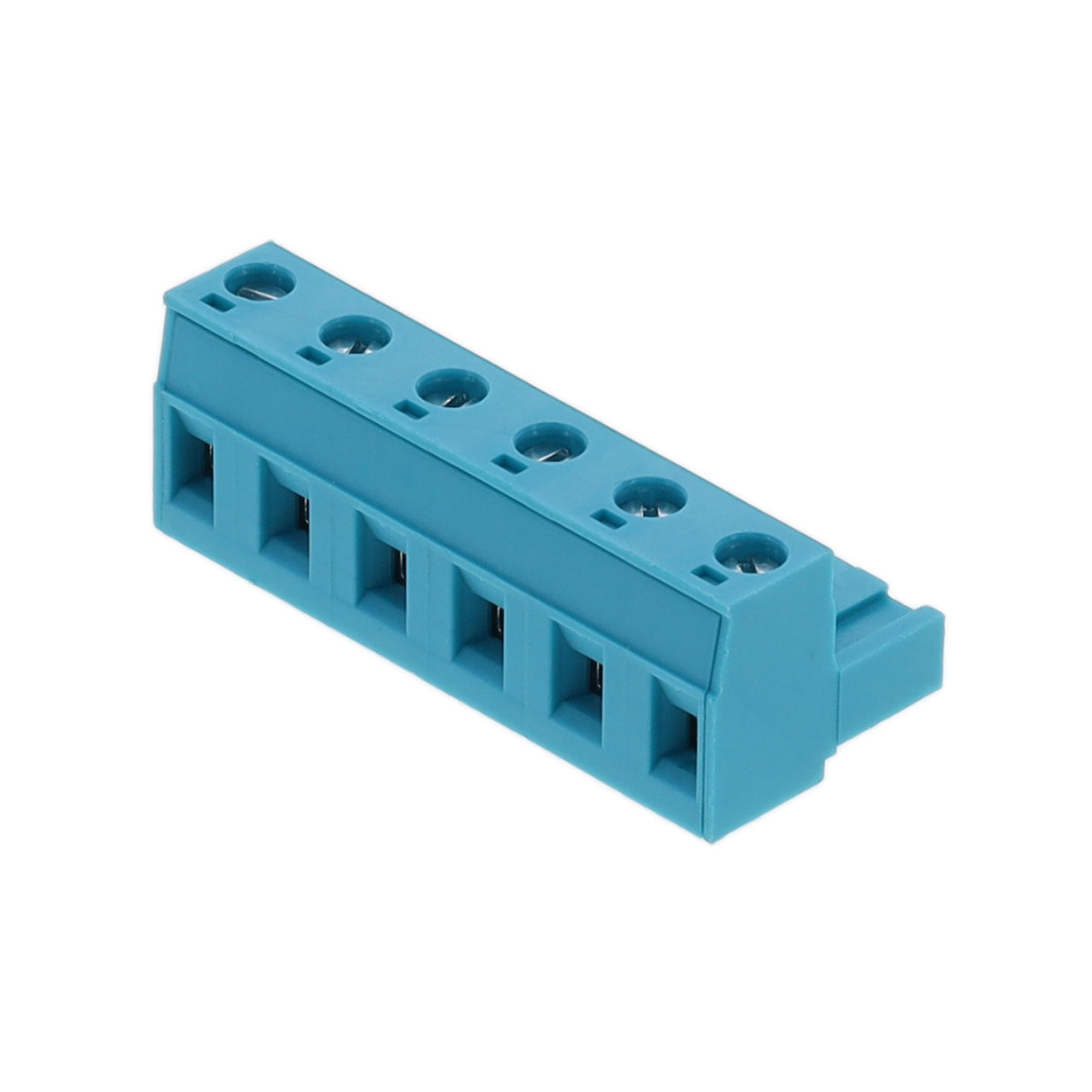

6 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | TBP05P1-762-06BE |
|---|---|
| Color | Blue |
| Contact Material | Copper Alloy |
| Contact Mating Finish | Nickel |
| Current - IEC | 10 A |
| Current - UL | 15 A |
| Features | Retention Latches (Non-Wire Side) |
| Housing Material | Nylon 6/6, Polyamide, PA66 |
| Insulation Height | 0.713 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 6 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.3 in |
| Plug Wire Entry Angle | 180 ° |
| Positions Per Level | 6 |
| Screw Size | M3 |
| Termination Style | Screw |
| Torque - Screw | 0.5 Nm |
| Type | Female Sockets, Plug |
| Voltage - IEC | 1000 V |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 2.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.5 mm² |
| Wire Strip Length (Max) | 8 mm |
| Wire Strip Length (Min) | 7 mm |
