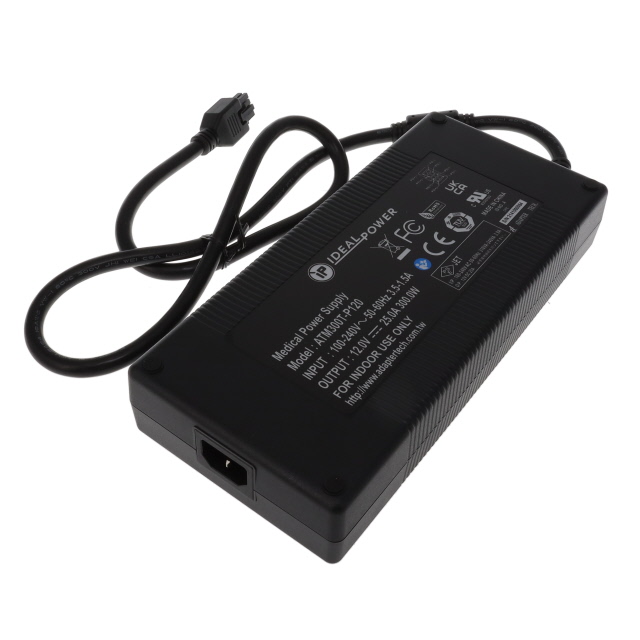

44ATM300T-P120
ActiveIdeal Power Ltd.
ADAPTER, AC-DC, 12V, 25A ROHS COMPLIANT: YES
44ATM300T-P120
ActiveIdeal Power Ltd.
ADAPTER, AC-DC, 12V, 25A ROHS COMPLIANT: YES
Description
General part information
44ATM300T-P120
12V AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
Technical Specifications
Parameters and characteristics for this part
| Specification | 44ATM300T-P120 |
|---|---|
| Applications | Medical |
| Approval Agency | cULus, CB, CE, UKCA, TUV, PSE, FCC |
| Cord Length | 39.4 in |
| Current - Output (Max) | 25 A |
| Efficiency | Level VI |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord (Sold Separately) |
| No Load Power Consumption (Max) | 210 mW |
| Output Connector | Rectangular |
| Output Connector Position | 8 |
| Region Utilized | North America |
| Size / Dimension Height | 1.85 in |
| Size / Dimension Length | 10 in |
| Size / Dimension Width | 4.57 in |
| Standard Number | 60601-1 |
| Voltage - Input (AC) Maximum | 240 VAC |
| Voltage - Input (AC) Minimum | 100 VAC |
| Voltage - Output | 12 V |
| Weight | 3.461 lbs |
